A/T Gear Position Indicator Panel Light/Park Pin Switch/D3 Switch (View 228)
A/T Gear Position Indicator Panel Light/Park Pin Switch/D3 Switch (View 228)
WHT
Behind Middle of Dash
On Dashboard Wire Harness

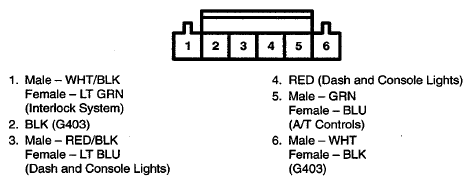

Fig 1: A/T Gear Position Indicator Panel Light/Park Pin Switch/D3 Switch Connector Terminal (View 228)
