Component Location Index

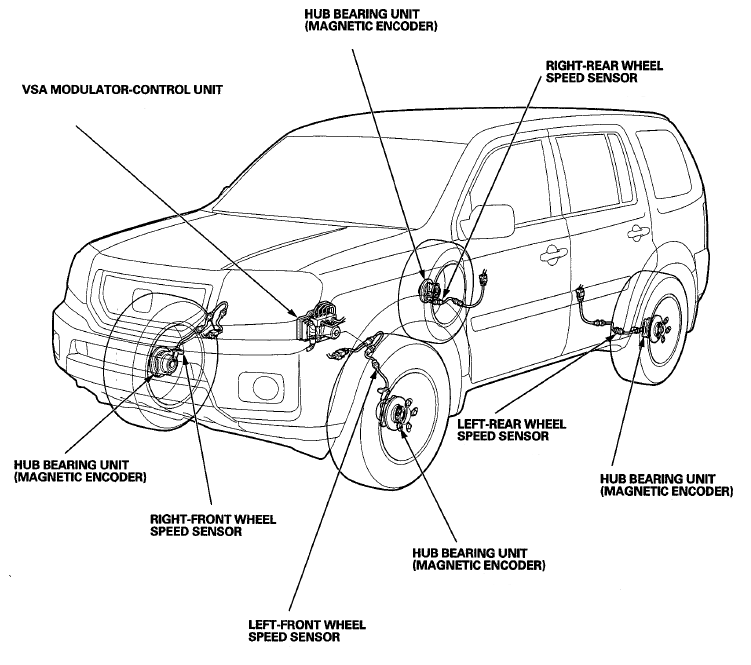

Fig 1: Identifying VSA System Replacement Components (1 Of 2)
G05962937Courtesy of AMERICAN HONDA MOTOR CO., INC.

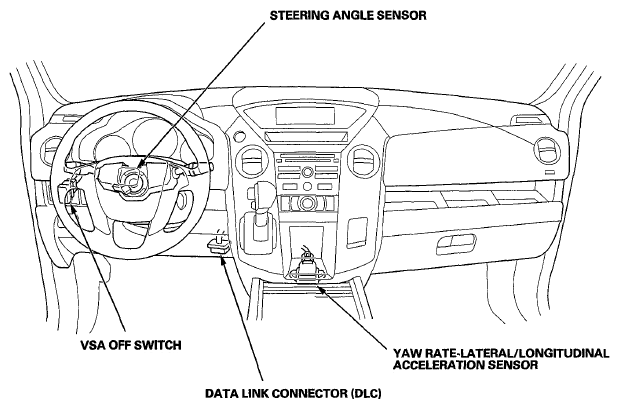

Fig 2: Identifying VSA System Replacement Components (2 Of 2)
G05962938Courtesy of AMERICAN HONDA MOTOR CO., INC.
