Rear Rocker Arm Oil Pressure Switch Removal/Installation

  1. Disconnect the rear rocker arm oil pressure switch 1P connector (A).

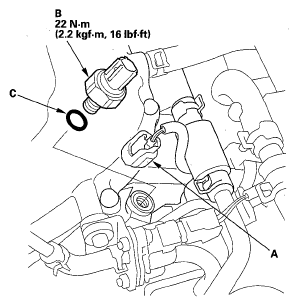

    Fig 1: Rear Rocker Arm Oil Pressure Switch And Connector With Torque Specification
    G05524007Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the rear rocker arm oil pressure switch (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
