C751 (View 231)
C751 (View 231)
GRY
Under left side of dash
Connects dashboard wire harness A (left branch) to driver's door wire harness

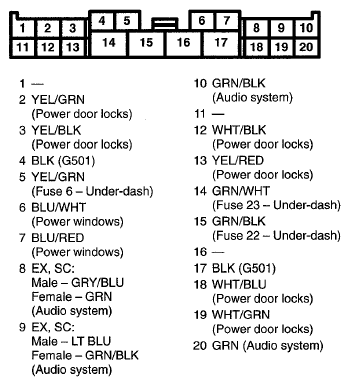

Fig 1: C751 Connector Terminal (View 231)
