C403 (View 224)
C403 (View 224)
WHT
Under middle of dash
Connects dashboard wire harness B to dashboard wire harness A (left branch)

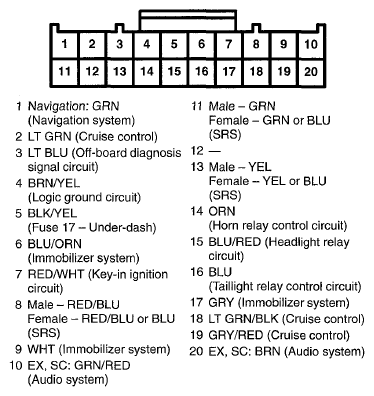

Fig 1: C403 Connector Terminal (View 224)
