Air Cleaner Element Inspection/Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the MAF sensor/IAT sensor harness (A) from the air cleaner housing cover (B).

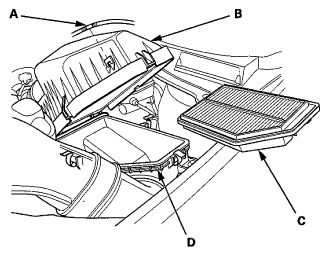

    Fig 1: Inspecting Air Cleaner Element Replacement Components
    G06966529Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Open the air cleaner housing cover.
  3. Remove the air cleaner element (C) from the air cleaner housing (D).
  4. Check the air cleaner element for damage or clogging. If it is damaged or clogged, replace it.
    NOTE: Do not use compressed air to clean the air cleaner element.
  5. Clean and remove any debris from inside the air cleaner housing.
  6. Install the parts in the reverse order of removal.

    If the idle speed fluctuates, do the idle speed inspection (see IDLE SPEED INSPECTION ).
