CKP Pulse Plate Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft (see CRANKSHAFT AND PISTON REMOVAL  ) from the engine block.
  2. Remove the crankshaft position (CKP) pulse plate (A).
    NOTE: Be careful not to damage the journals and the CKP pulse plate.

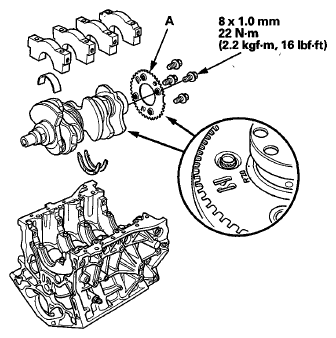

    Fig 1: Crankshaft Position (CKP) Pulse Plate With Torque Specifications
    G06422332Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the CKP pulse plate in the reverse order of removal.
    NOTE: When installing the crankshaft, refer to the crankshaft and piston installation procedure (see Crankshaft and Piston Installation  ).
