Except LX and LX-VP models

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector from the security indicator.

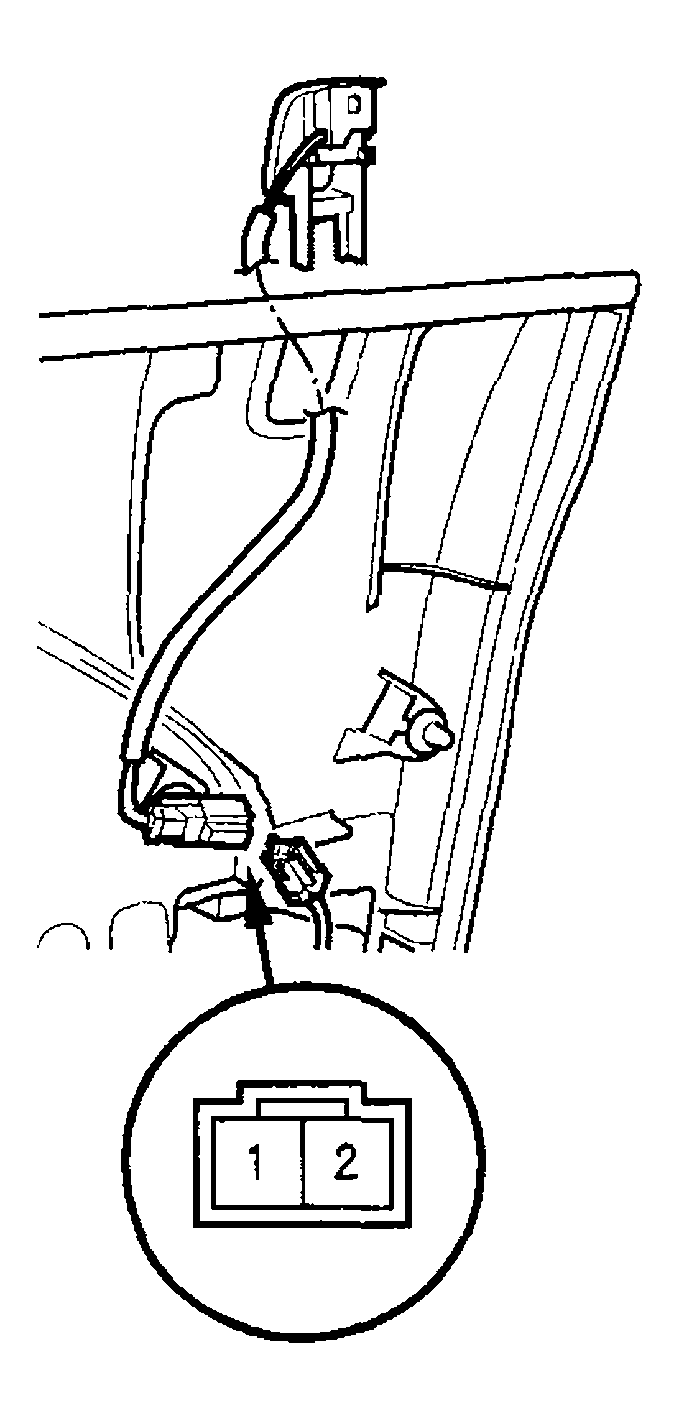

    Fig 1: Disconnecting 2P Connector From Security Indicator
    G04247365Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the indicator by connecting battery power to the No. 2 terminal and grounding the No. 1 terminal. The LED should come on.
  4. If the LED does not come on, replace the security indicator.
