Windshield Wiper Motor Connector End View

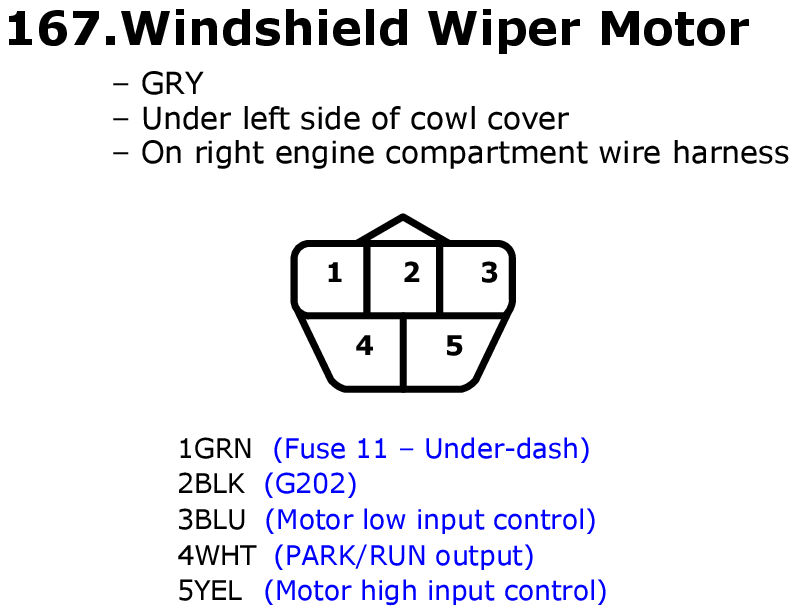

Fig 1: Windshield Wiper Motor Connector End View

GHHW6870

Courtesy of AMERICAN HONDA MOTOR CO., INC.
