Right Headlight Connector End View

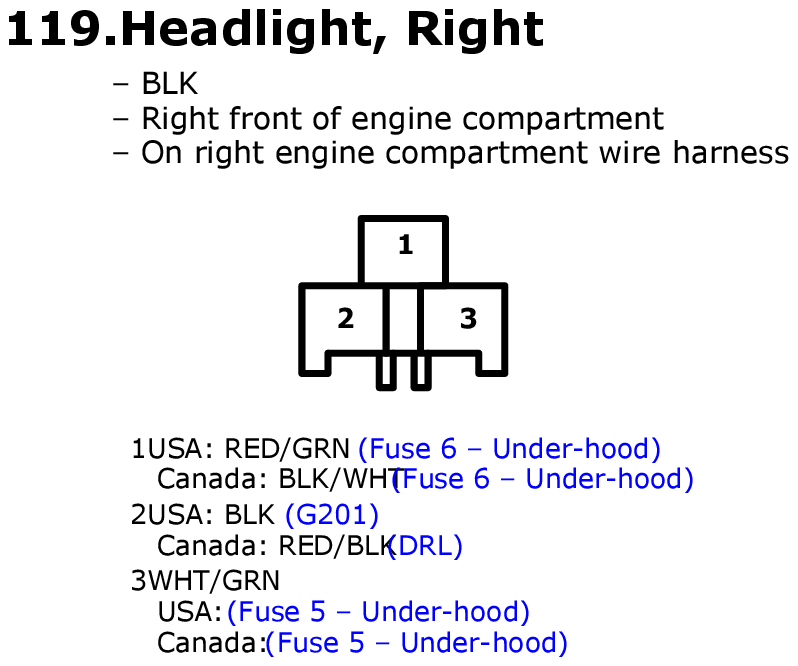

Fig 1: Right Headlight Connector End View

GHHW6822

Courtesy of AMERICAN HONDA MOTOR CO., INC.
