Left Taillight Assembly Connector End View

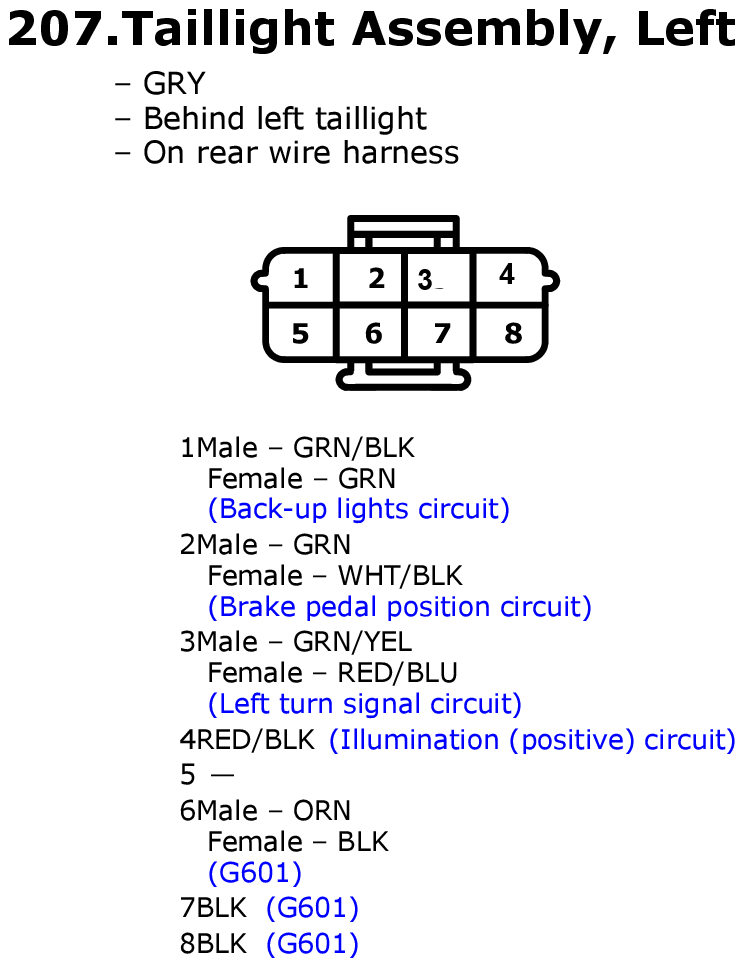

Fig 1: Left Taillight Assembly Connector End View

GHHW6910

Courtesy of AMERICAN HONDA MOTOR CO., INC.
