Left Rear Wheel Speed Sensor Connector End View

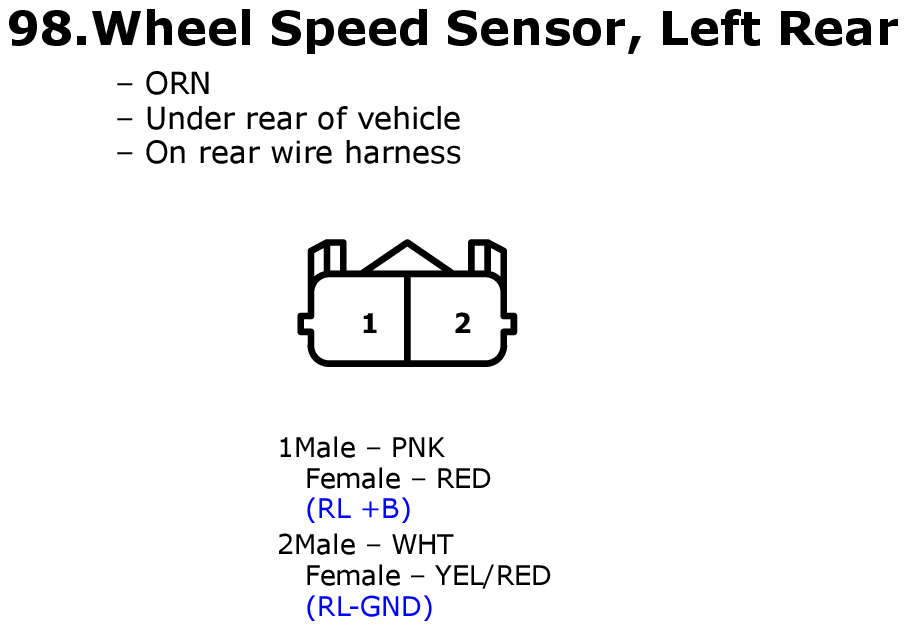

Fig 1: Left Rear Wheel Speed Sensor Connector End View

GHHW6801

Courtesy of AMERICAN HONDA MOTOR CO., INC.
