Hazard Warning Switch Connector End View

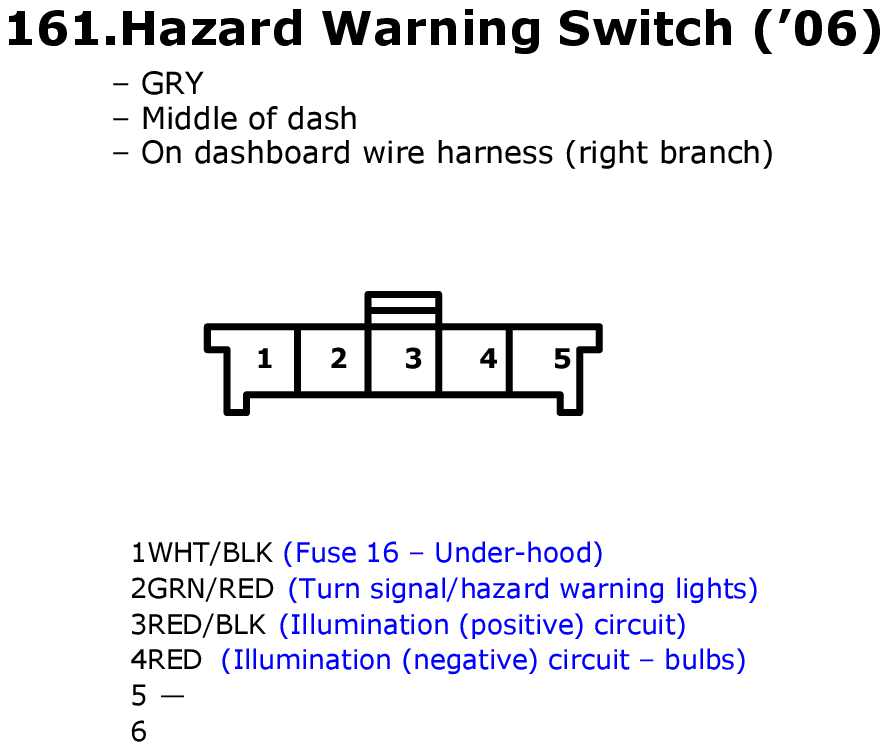

Fig 1: Hazard Warning Switch Connector End View

GHHW6864

Courtesy of AMERICAN HONDA MOTOR CO., INC.
