Driver's Accessory Power Socket Connector End View

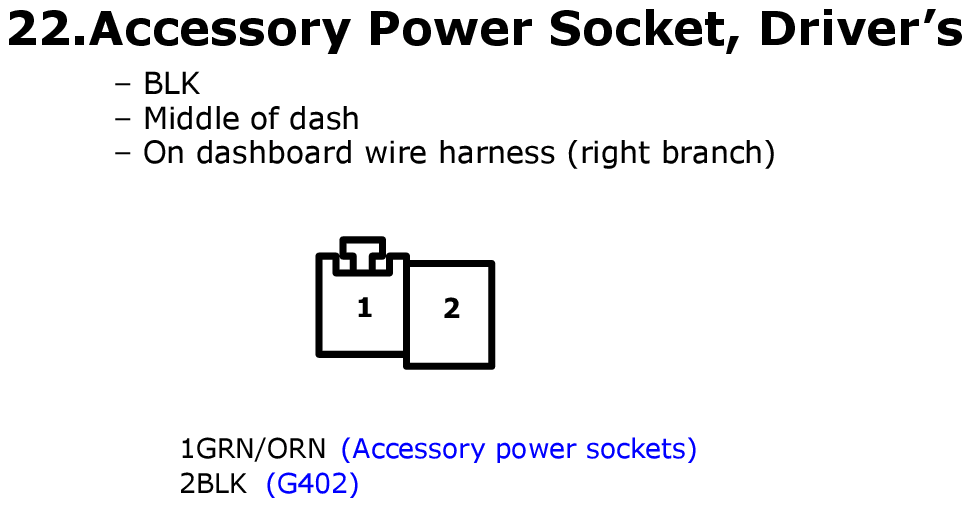

Fig 1: Driver's Accessory Power Socket Connector End View

GHHW6725

Courtesy of AMERICAN HONDA MOTOR CO., INC.
