C505 Connector End View

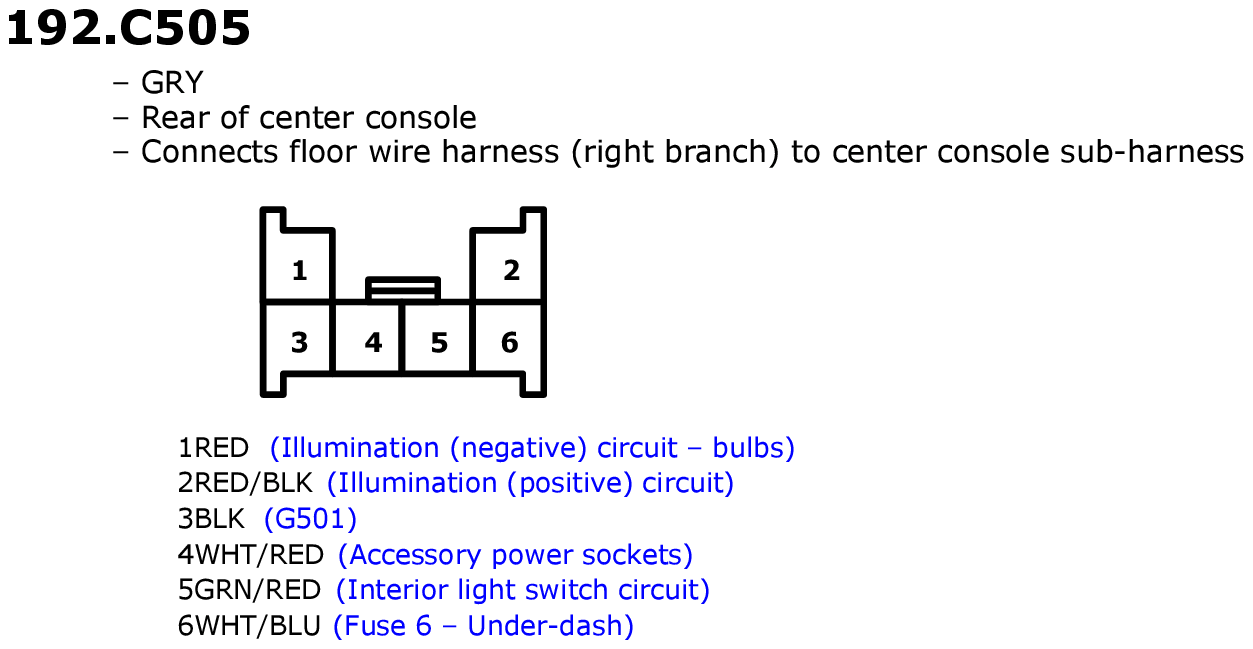

Fig 1: C505 Connector End View

GHHW6895

Courtesy of AMERICAN HONDA MOTOR CO., INC.
