C302 Connector End View

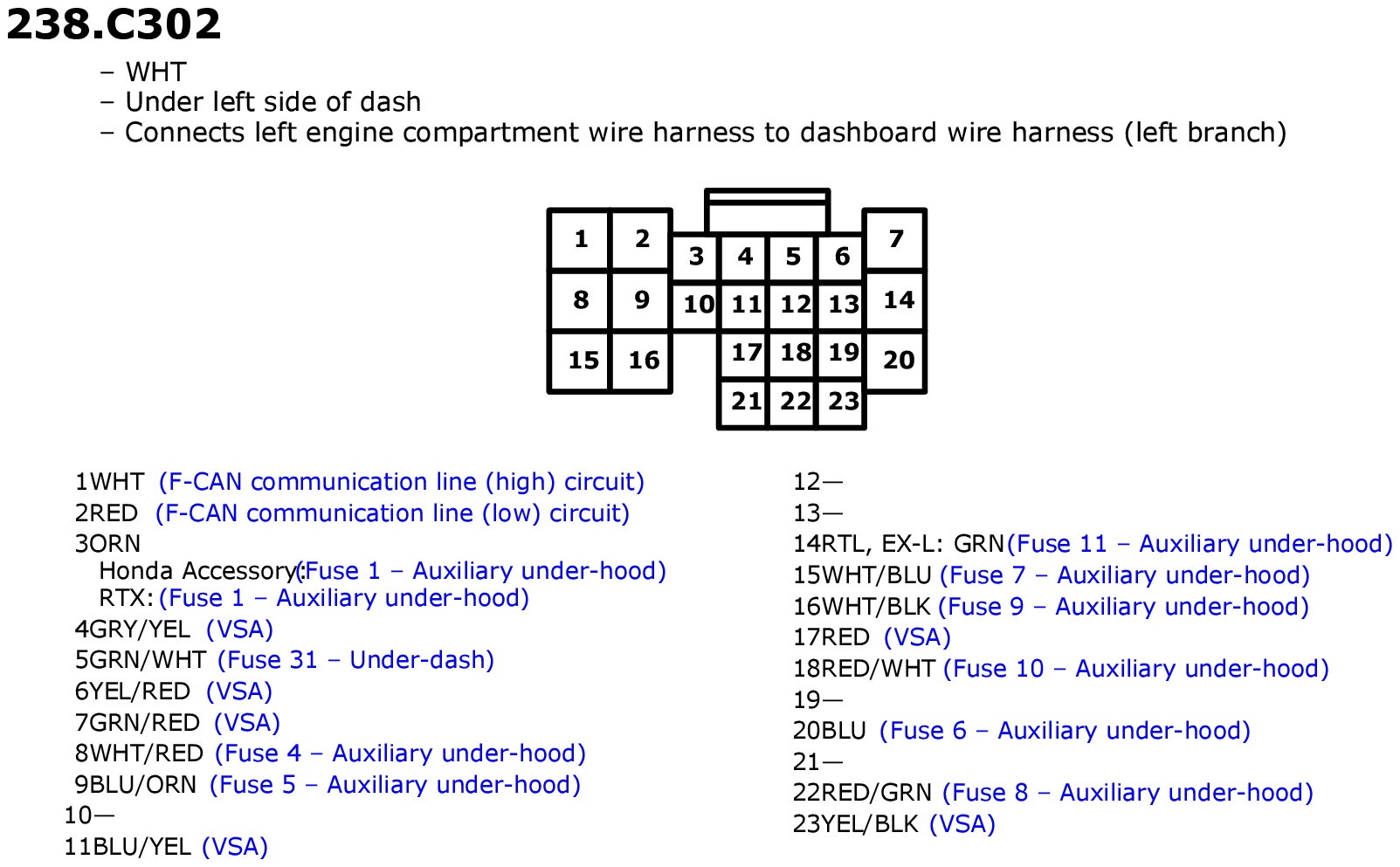

Fig 1: C302 Connector End View

GHHW6941

Courtesy of AMERICAN HONDA MOTOR CO., INC.
