Sunlight Sensor Replacement

  1. Remove the sunlight sensor (A) from the dashboard, then disconnect the connector (B). Be careful not to damage the sensor and the dashboard.

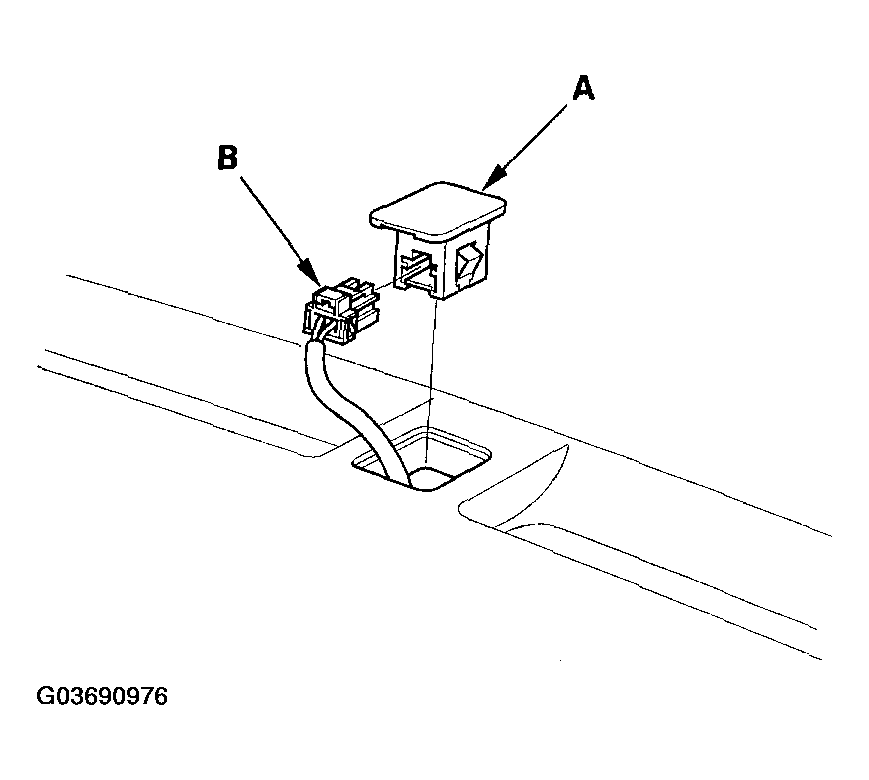

    Fig 1: Removing Sunlight Sensor From Dashboard, And Disconnecting Connector
    G03690976Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor in the reverse order of removal.
