Climate Control Unit Removal and Installation

  1. Remove the center panel (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screws and the climate control unit (A).

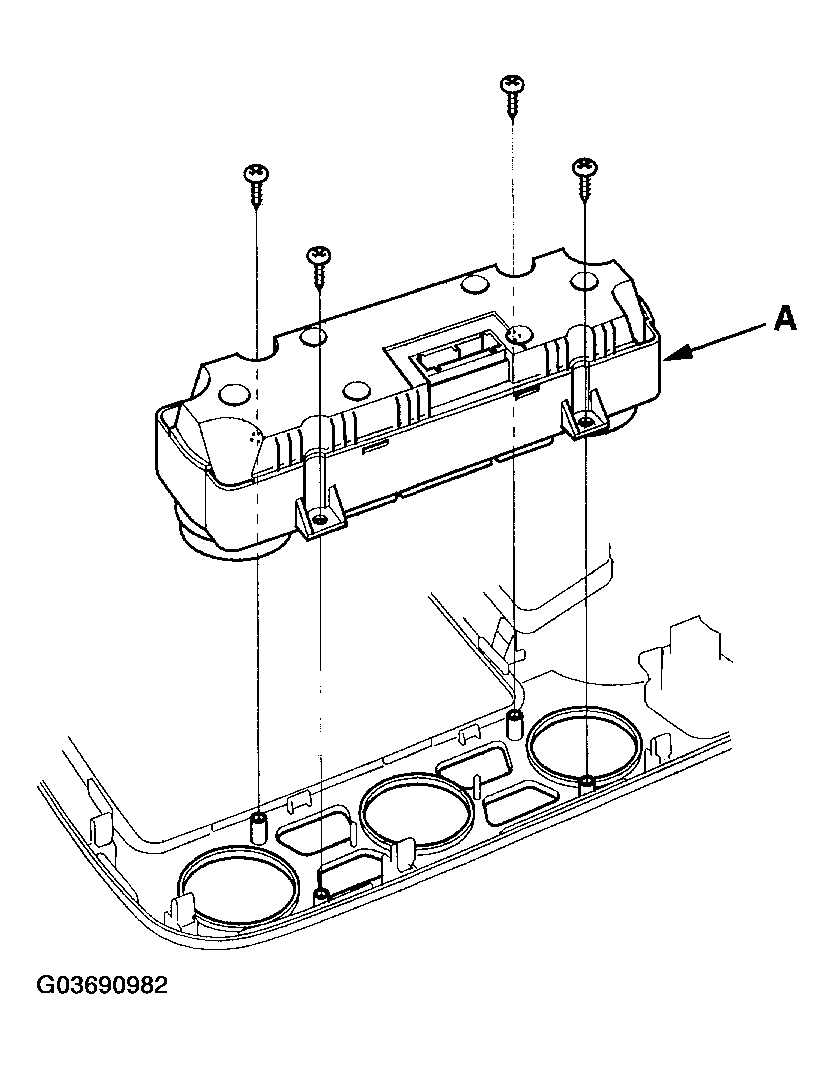

    Fig 1: Removing Self-Tapping Screws And Climate Control Unit
    G03690982Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the control unit in the reverse order of removal. After installation, operate the various functions to see whether works properly.
  4. Run the self-diagnostic function to confirm that there are no problems in the system (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION WITHOUT THE HDS  ).
