Tailgate Latch Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Put on gloves to protect your hands.
  1. Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the handle cable (A), cylinder rod (B), tailgate latch actuator connector (C), and tailgate latch switch connector (D), and detach the connector.

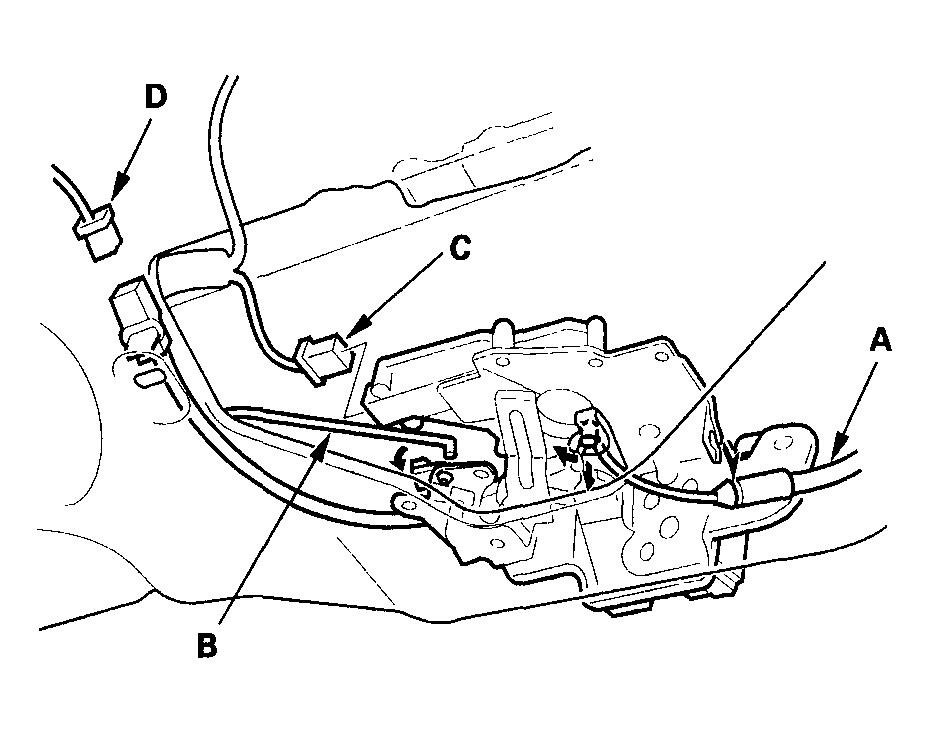

    Fig 1: Disconnecting Handle Cable (A), Cylinder Rod (B), Tailgate Latch Actuator Connector (C), And Tailgate Latch Switch Connector (D)
    G04248426Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts, then remove the tailgate latch (A).

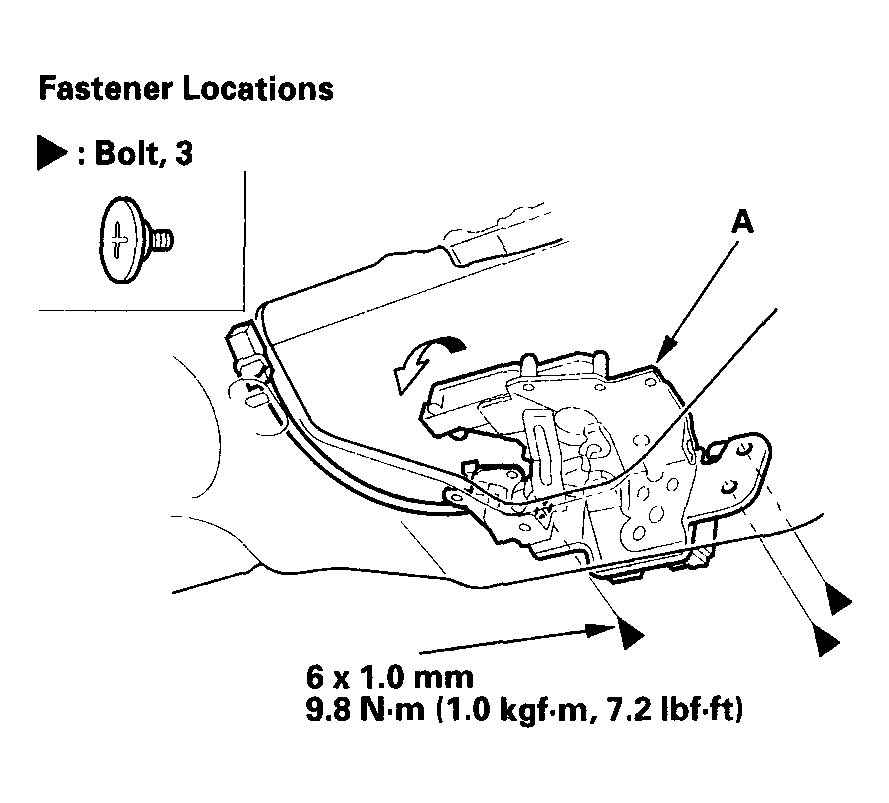

    Fig 2: Removing Tailgate Latch
    G04248427Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the tailgate latch in the reverse order of removal, and note these items:
    • Make sure the connectors are plugged in properly and the handle cable is connected properly.
    • Make sure the cable actuates the latch before you close the tailgate.
    • Make sure the tailgate opens properly and locks securely.
    • For some models, make sure the security system operates properly with the tailgate opened and closed.
