Active Noise Control Unit Connector For Inputs And Outputs (2WD)
WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

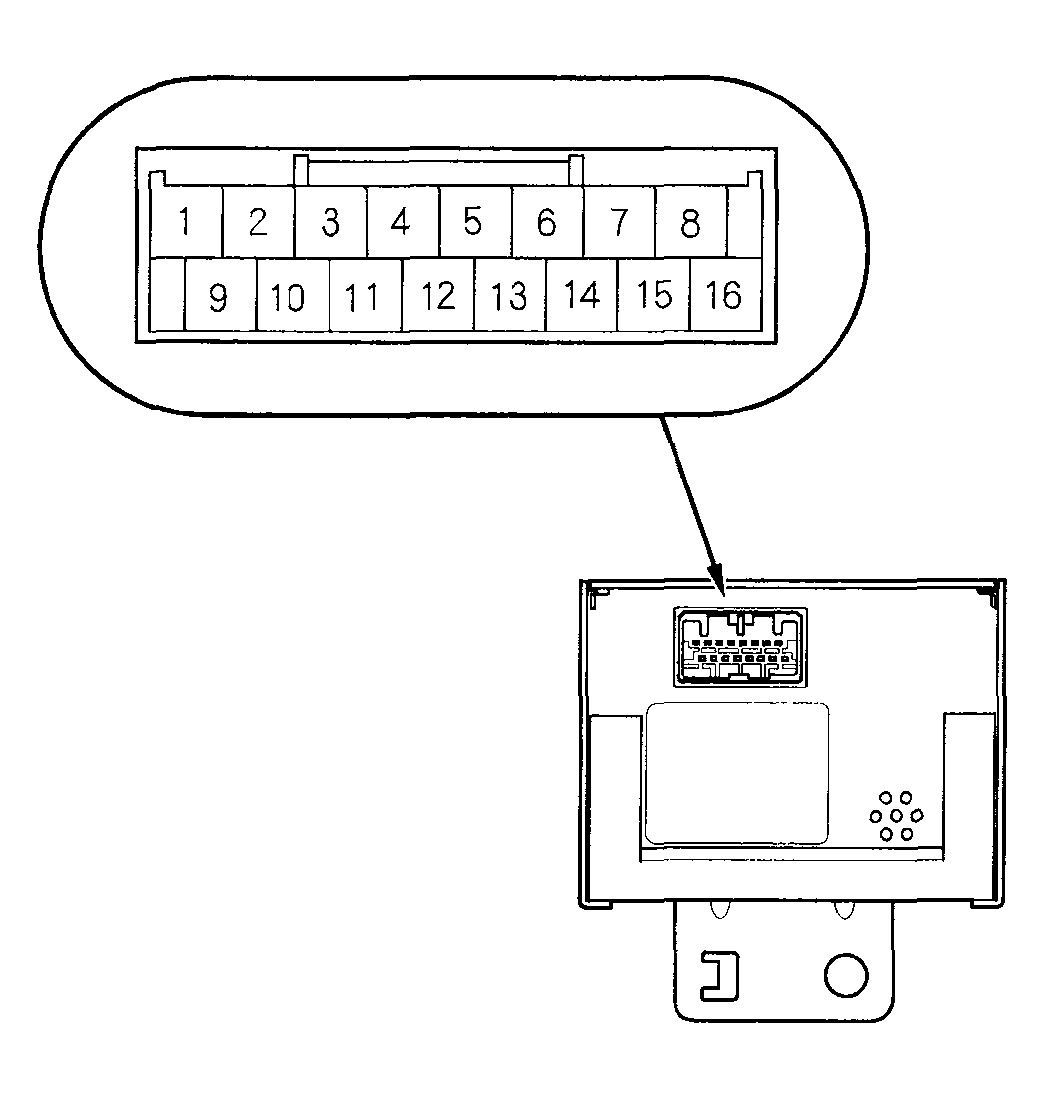

When replacing an active noise control unit connector, match the wires to the cavities listed in CONNECTOR TERMINAL REFERENCE TABLE .
CONNECTOR TERMINAL REFERENCE TABLE
| Cavity | Wire | Connect to |
|---|---|---|
| 1 | GRY/YEL | Audio unit (ANC RR+) |
| 2 | BLK | Audio unit (ANC FR+) |
| 3 | ORN | Active noise control rear microphone (RR MIC+) |
| 4 | -- | Not used |
| 5 | -- | Not used |
| 6 | -- | Not used |
| 7 | BLK | Ground (G401) |
| 8 | YEL/BLK | ACC (main stereo power supply) |
| 9 | WHT | Audio unit (ANC RR-) |
| 10 | GRN | Audio unit (ANC FR-) |
| 11 | GRN | Active noise control rear microphone (RR MIC-) |
| 12 | RED/BLK | Audio unit (ANC CHK2) |
| 13 | -- | Not used |
| 14 | PNK | PCM (CCSAM) |
| 15 | BLU | PCM, VTM-4 control unit (NED) |
| 16 | BLK/WHT | Passenger's multiplex control unit (INTR LT) |
