Wiper Motor Replacement: Windshield

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the nuts (A) and the windshield wiper arms (B).

Fig 1: Removing Nuts And Windshield Wiper Arms With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the hood seal (A) and cowl covers (B).

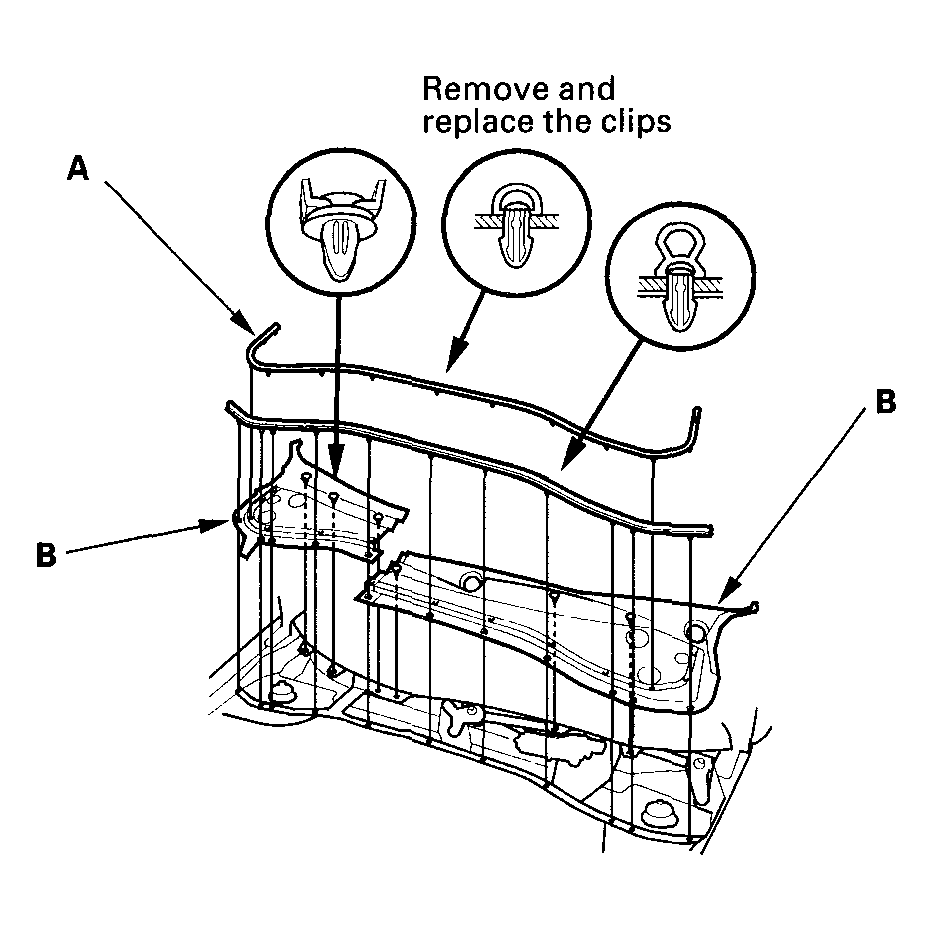

Fig 2: Removing Hood Seal & Cowl Covers
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 5P connector (A) from the windshield wiper motor (B).

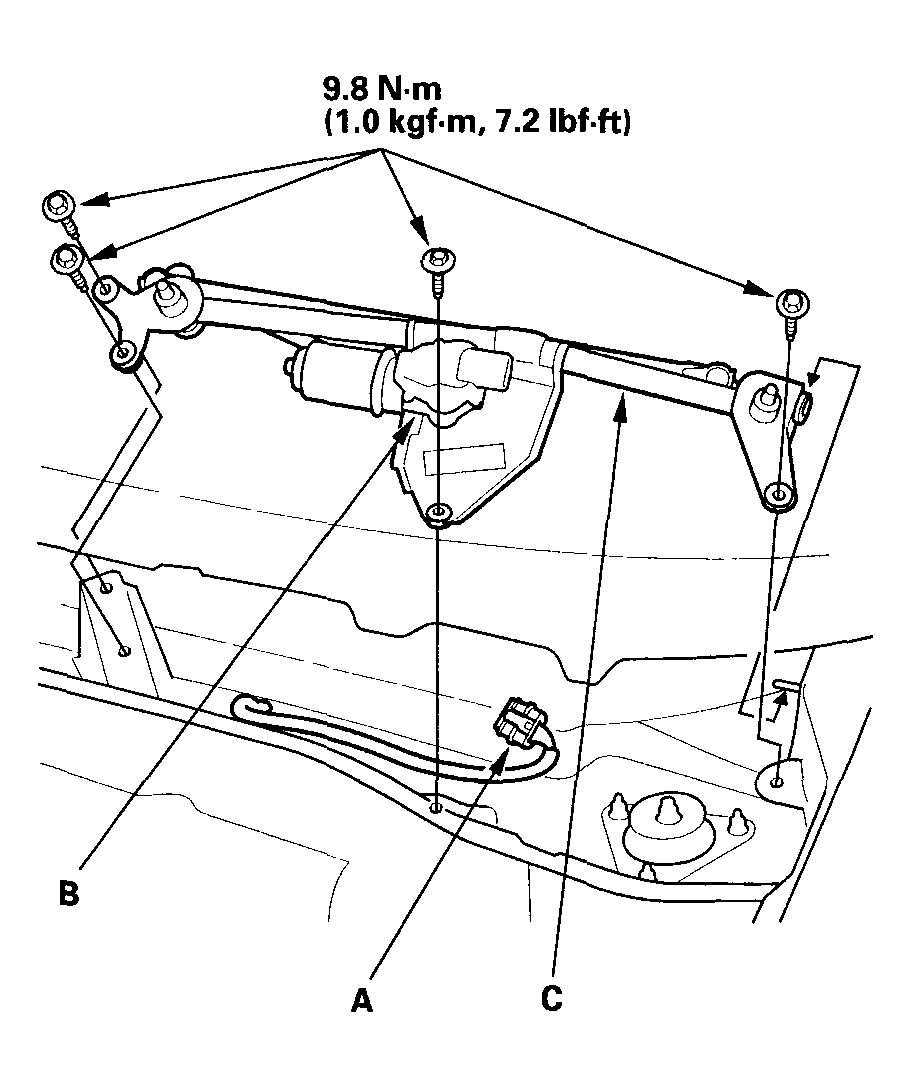

Fig 3: Disconnecting 5P Connector From Windshield Wiper Motor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the mounting bolts and the wiper linkage assembly (C).
Scribe a line (A) across the link and windshield wiper linkage to show the original adjustment. Separate the windshield wiper linkage (B) from the wiper motor (C).

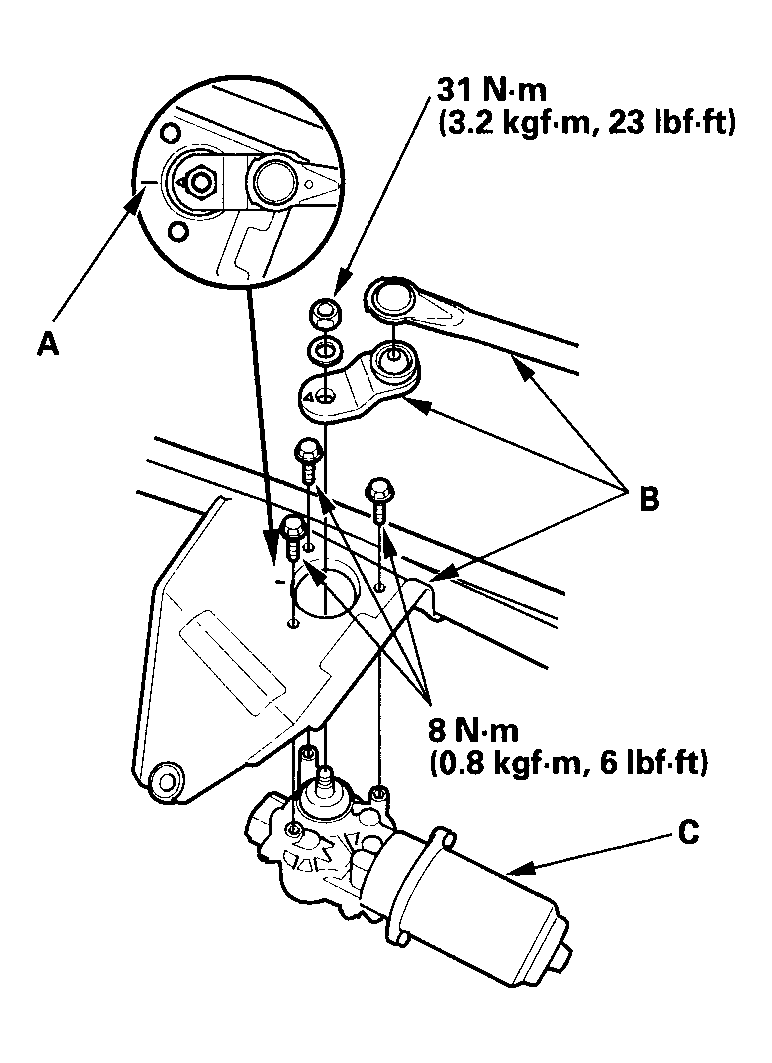

Fig 4: Separating Windshield Wiper Linkage From Wiper Motor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and note these items:
- Apply multipurpose grease to the moving parts.
- Before reinstalling the wiper arms, turn the wiper switch ON, then OFF to return the wiper shafts to the park position.
- If necessary, replace any damaged clips.
- Make sure the wiper motor operates properly.
