Circuit Diagram

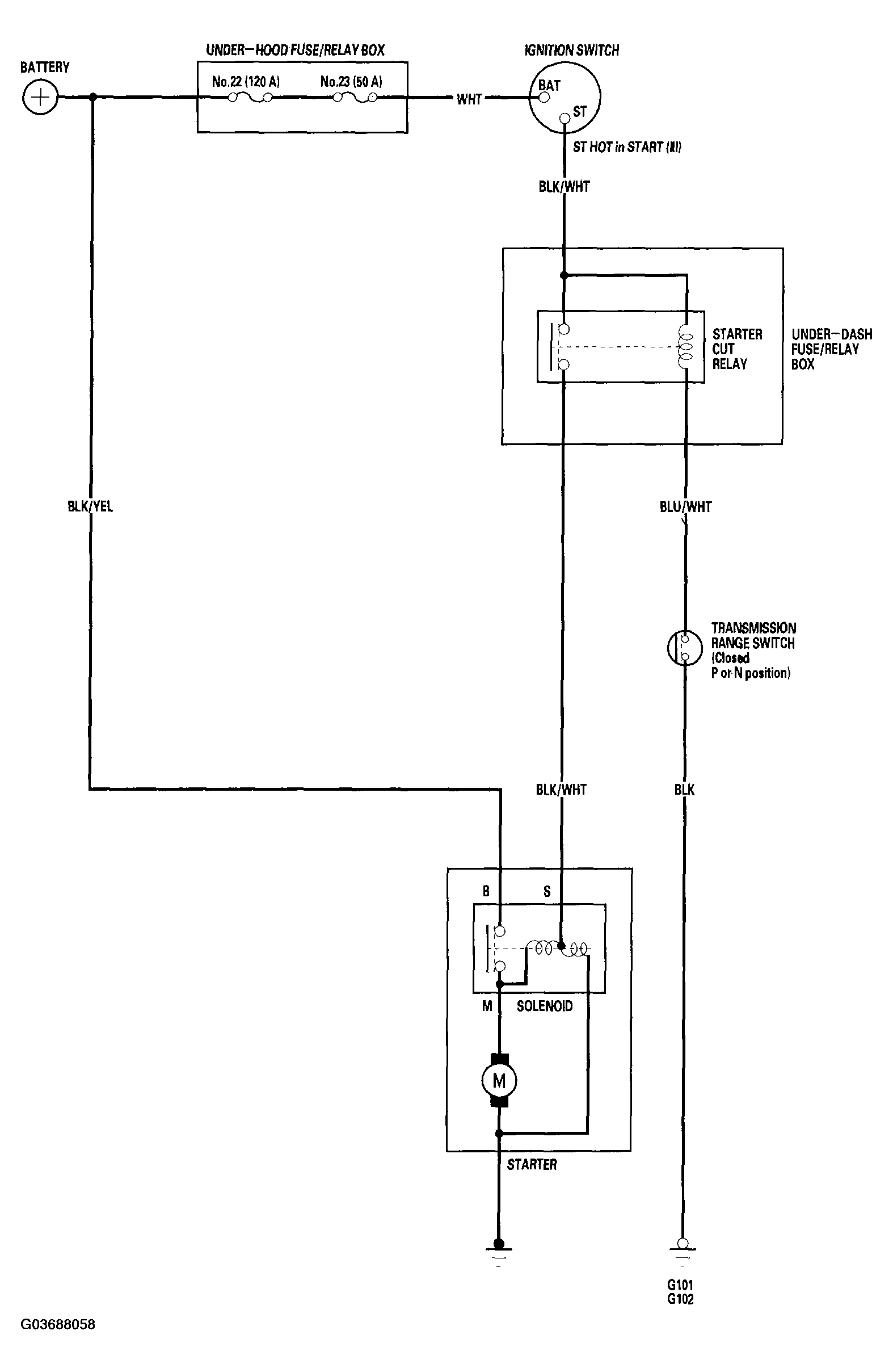

Fig 1: Starting System Circuit Diagram

G03688058

Courtesy of AMERICAN HONDA MOTOR CO., INC.
