Door Key Cylinder Switch Test

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 3P connector from the key cylinder switch.

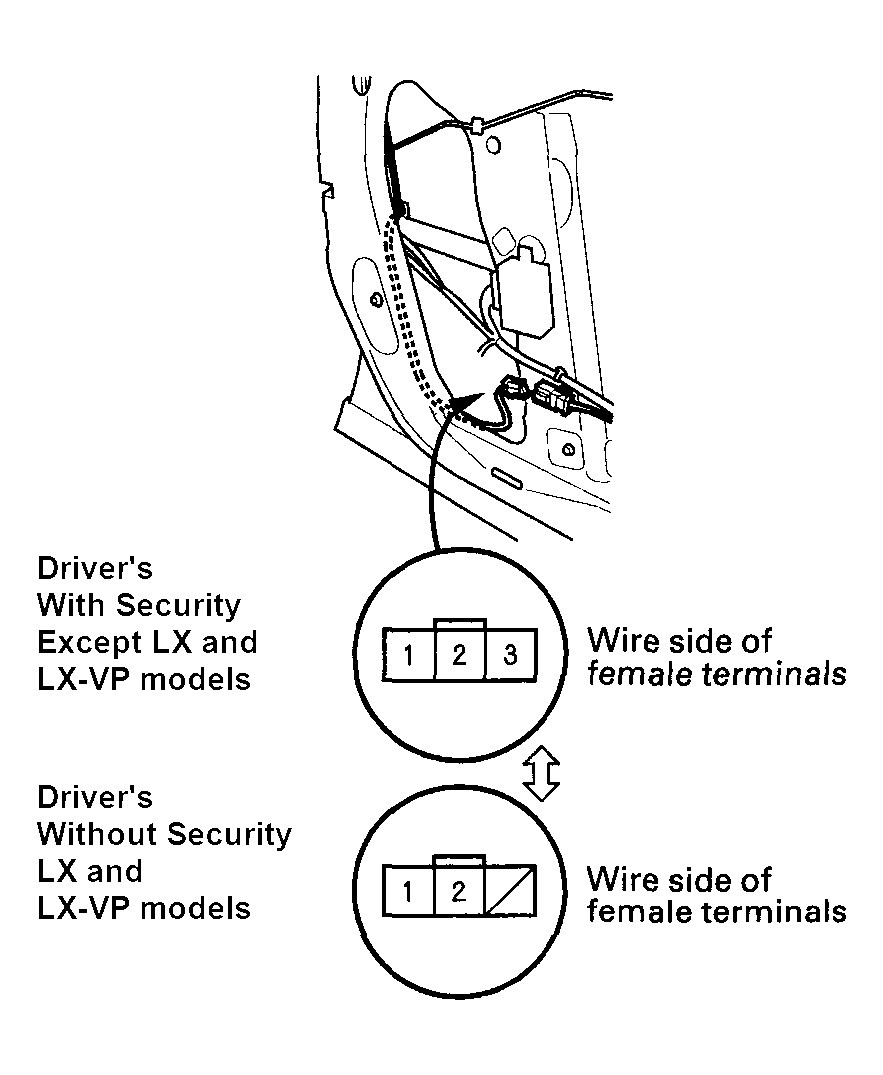

    Fig 1: Disconnecting 3P Connector From Door Key Cylinder Switch
    G04247360Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals.
    • There should be continuity between the No. 2 and No. 3 terminals when the door key cylinder switch is in the LOCK position (Except driver's without security).
    • There should be no continuity between the No. 2 and No. 3 terminals when the door key cylinder switch is in the neutral position (Except driver's without security).
    • There should be continuity between the No. 1 and No. 2 terminals when the door key cylinder switch is in the UNLOCK position.
    • There should be no continuity between the No. 1 and No. 2 terminals when the door key cylinder switch is in the neutral position.
  4. If the continuity is not as specified, replace the switch.
    NOTE: Make sure the slot in the switch is properly aligned with the tab on the key cylinder.
