Connecting Rod Journal Code Locations

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Numbers or bars have been stamped on the side of each connecting rod as a code for the size of the big end. Use them, and the letters or bars stamped on the crank (codes for rod journal size), to choose the correct bearings. If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

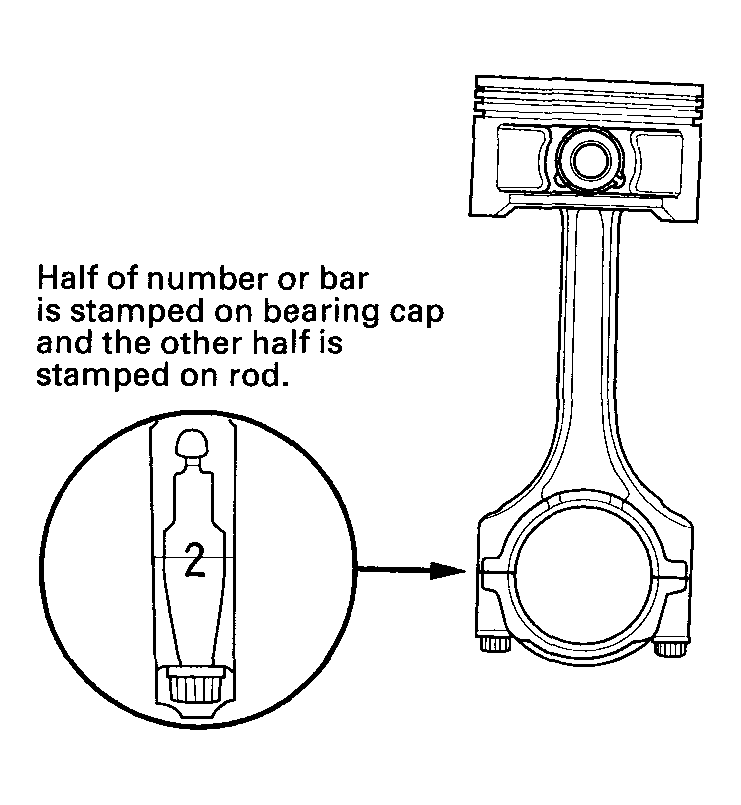

Fig 1: Identifying Connecting Rod Journal Code Locations
G04244912Courtesy of AMERICAN HONDA MOTOR CO., INC.

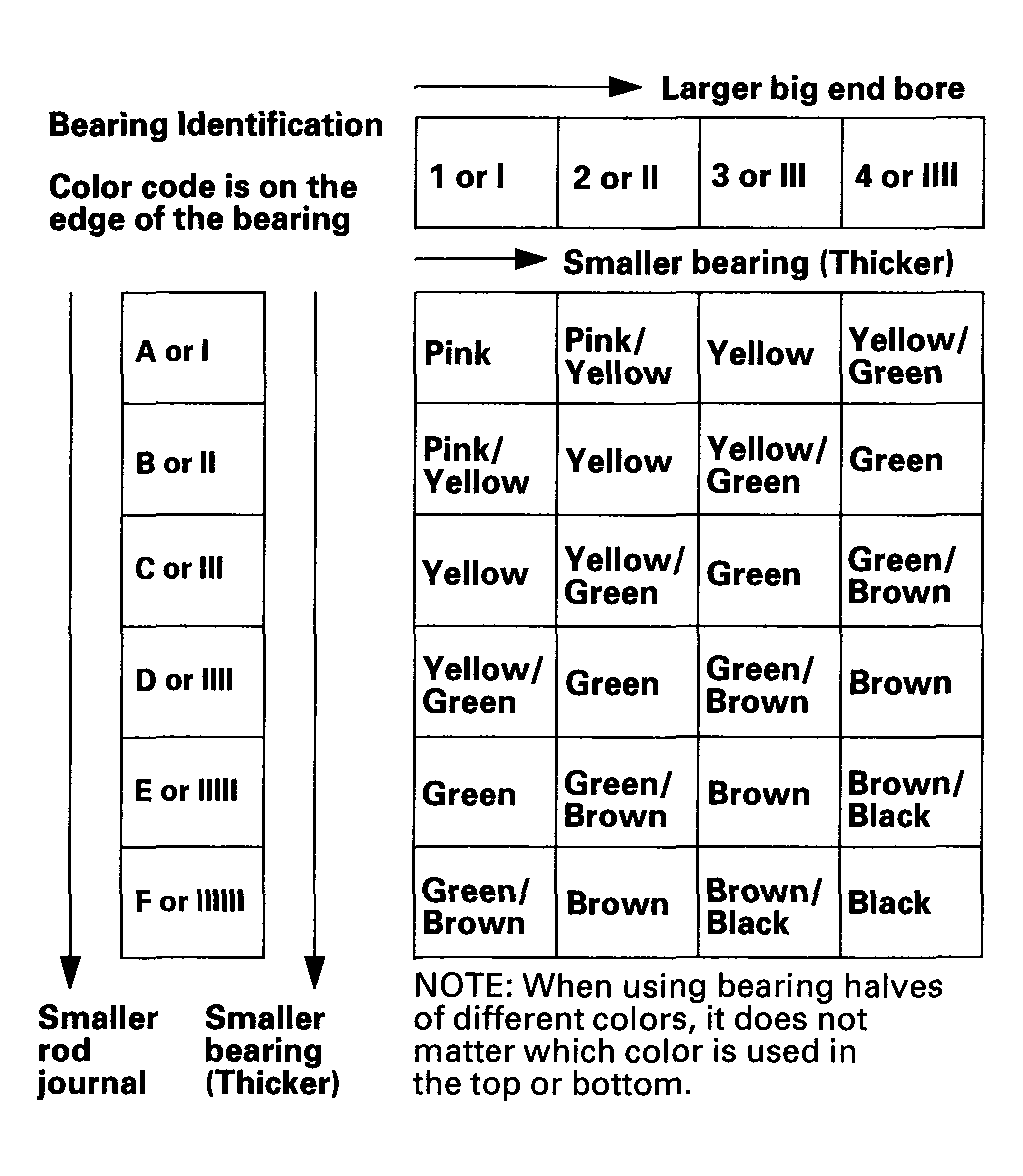

Fig 2: Bearing Identifications Reference Table
G04244913Courtesy of AMERICAN HONDA MOTOR CO., INC.
