Knock Sensor

The knock control system adjusts the ignition timing to minimize knock using signals from the knock sensor (KS).

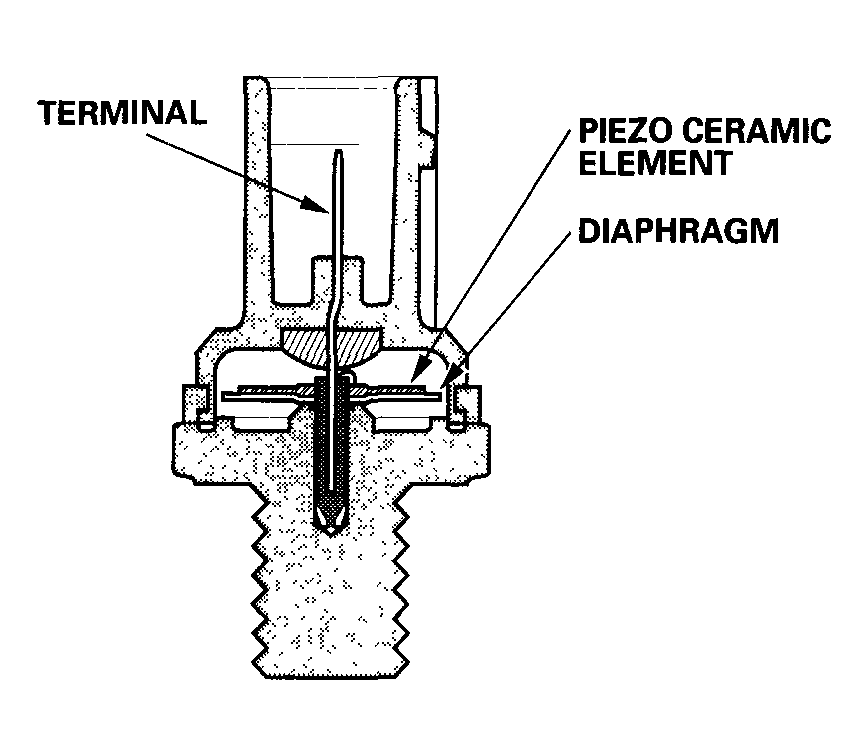

Fig 1: Cut Section View Of Knock Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
