Cruise Control Main Switch Test/Replacement

  1. Remove the switch panel (see DRIVER'S SWITCH PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 13P connector (A), then release the clips of the cruise control main switch, and push the cruise control main switch (B) out of the panel.

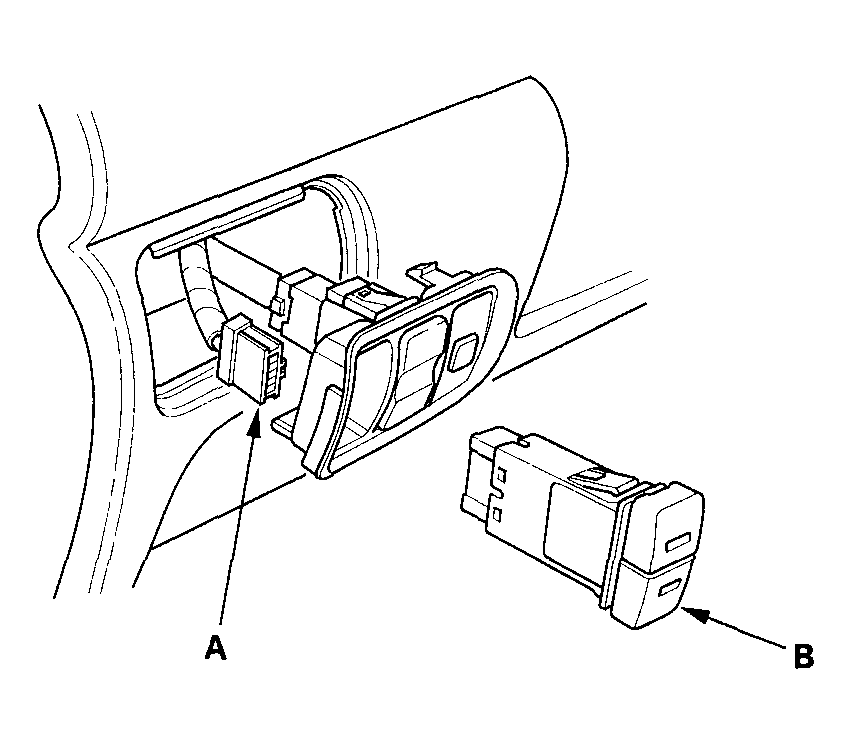

    Fig 1: Disconnecting 13P Connector
    G04244496Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the illustration. If there is no continuity, replace indicator bulbs (A) or the switch.

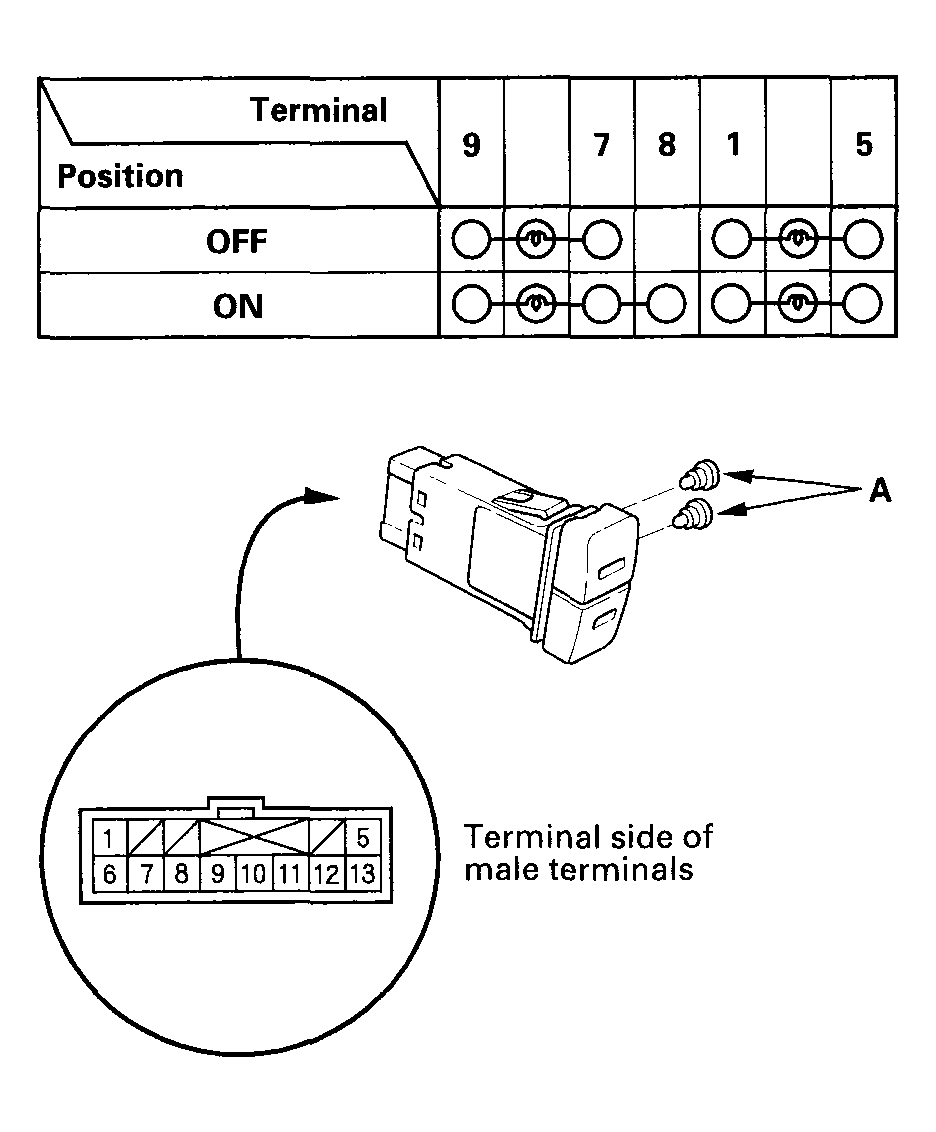

    Fig 2: Identifying Switch Position - Cruise Control Main Switch
    G04244497Courtesy of AMERICAN HONDA MOTOR CO., INC.
