Rear Climate Control Panel (With Navigation 07) Connector End View

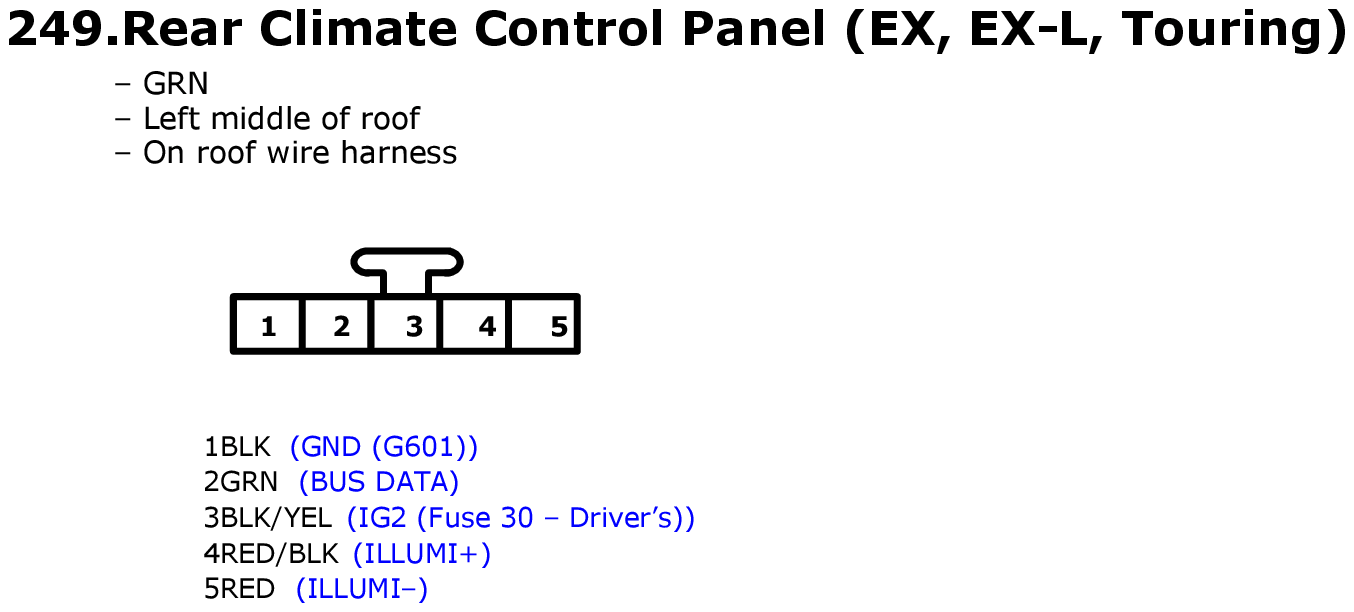

Fig 1: Rear Climate Control Panel (With Navigation 07) Connector End View

GHHW5468

Courtesy of AMERICAN HONDA MOTOR CO., INC.
