Navigation Unit (EX-L, Touring) Connector End View

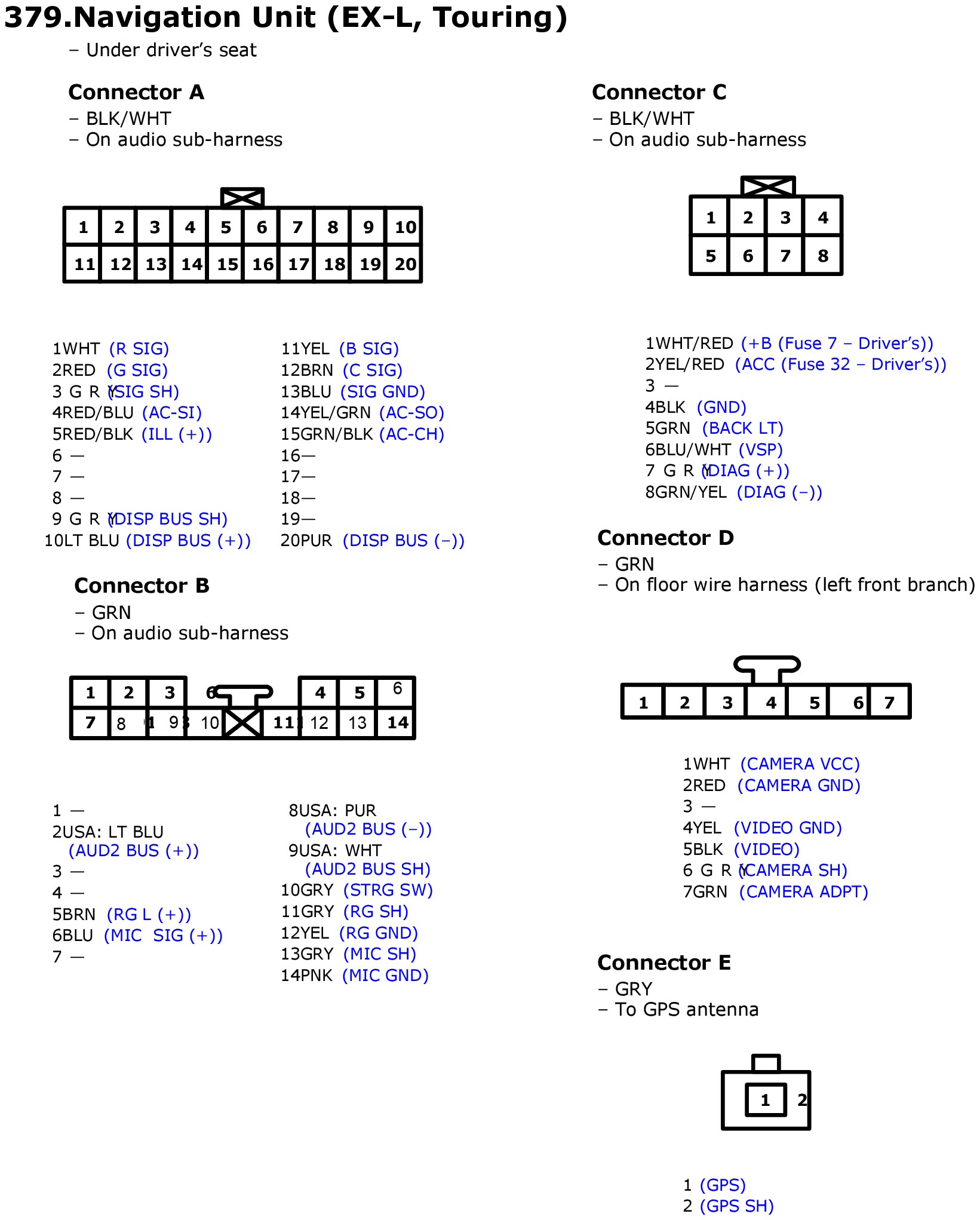

Fig 1: Navigation Unit (EX-L, Touring) Connector End View

GHHW5197

Courtesy of AMERICAN HONDA MOTOR CO., INC.
