Front Passenger's Power Window Switch/Door Lock Switch Connector End View

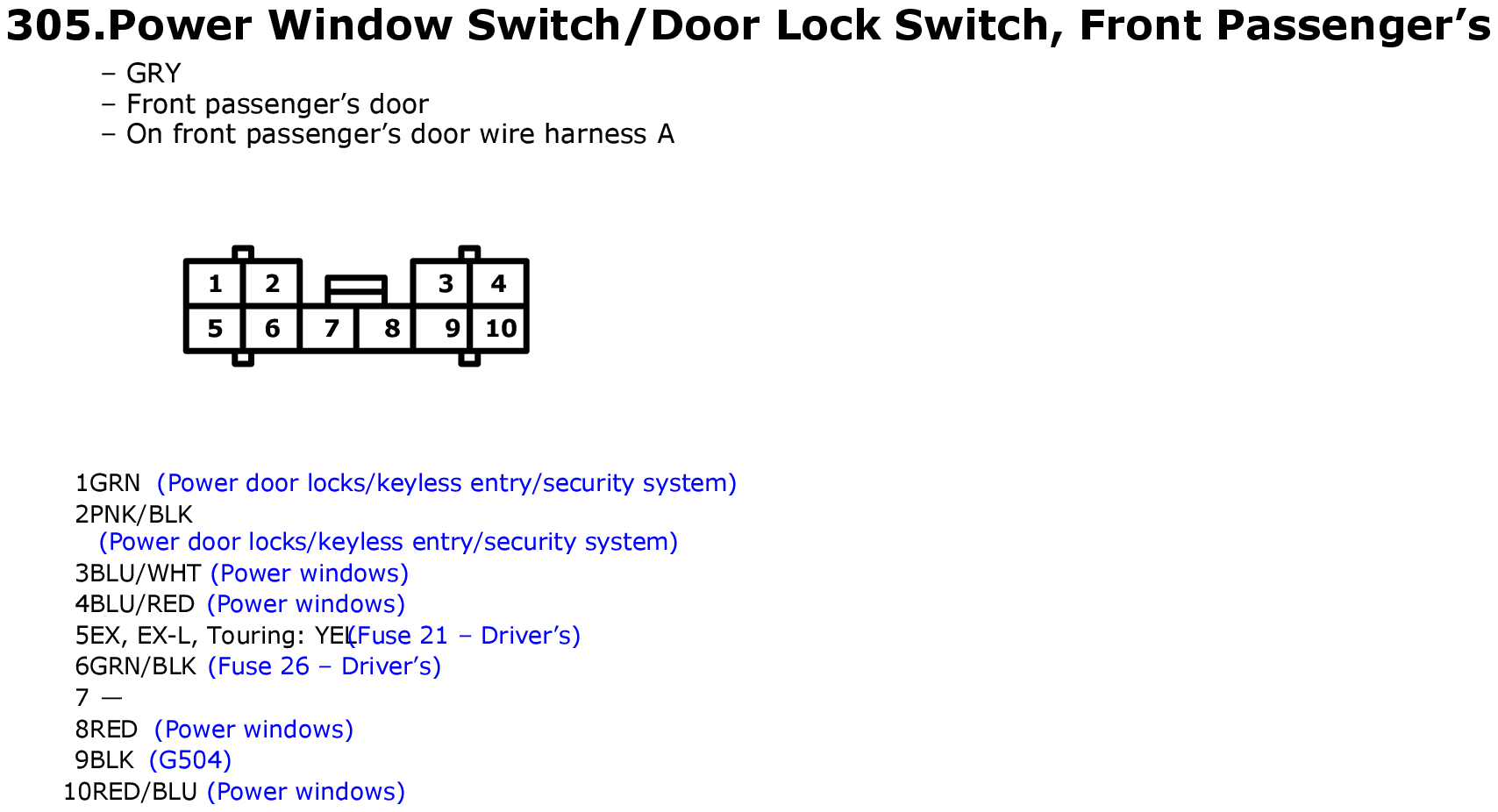

Fig 1: Front Passenger's Power Window Switch/Door Lock Switch Connector End View
GHHW5123Courtesy of AMERICAN HONDA MOTOR CO., INC.

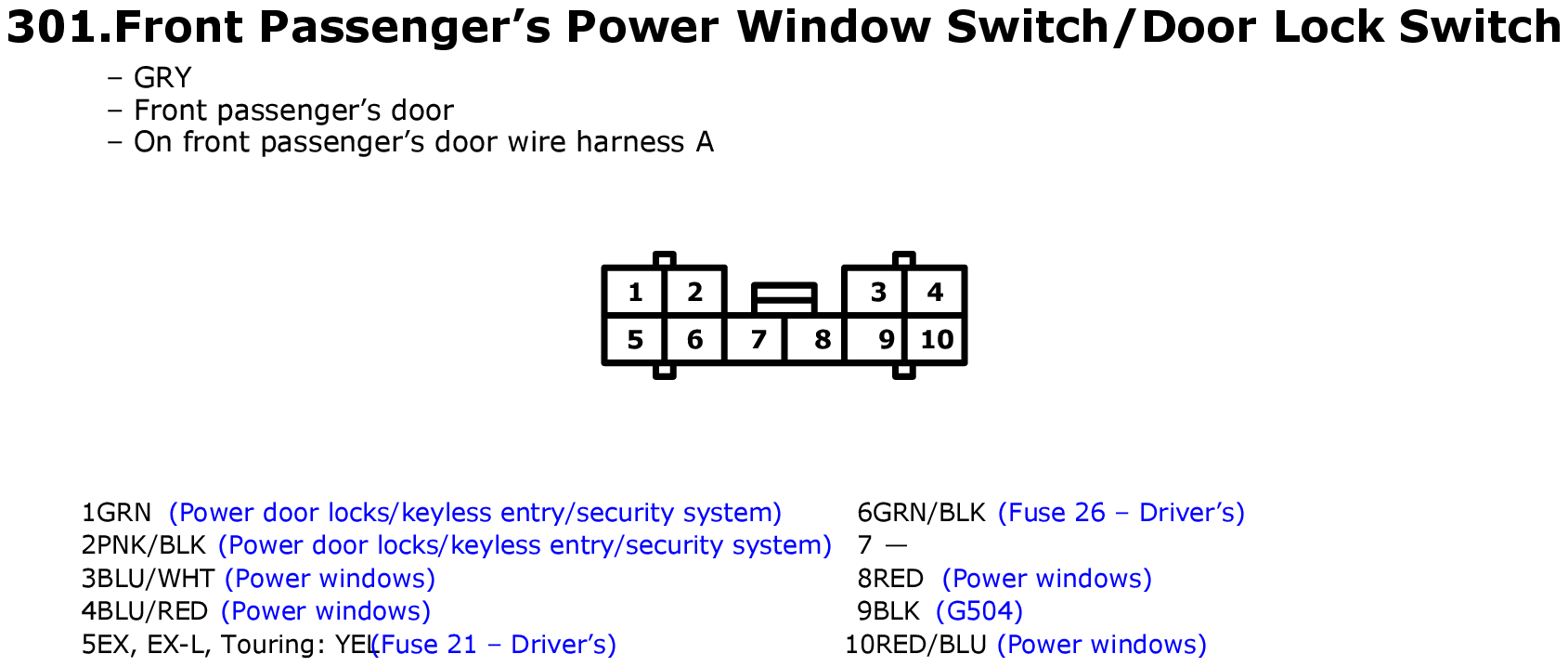

Fig 1: Front Passenger's Power Window Switch/Door Lock Switch Connector End View
GHHW5520Courtesy of AMERICAN HONDA MOTOR CO., INC.
