Front Mode Control Motor (EX, EX-L, Touring) Connector End View

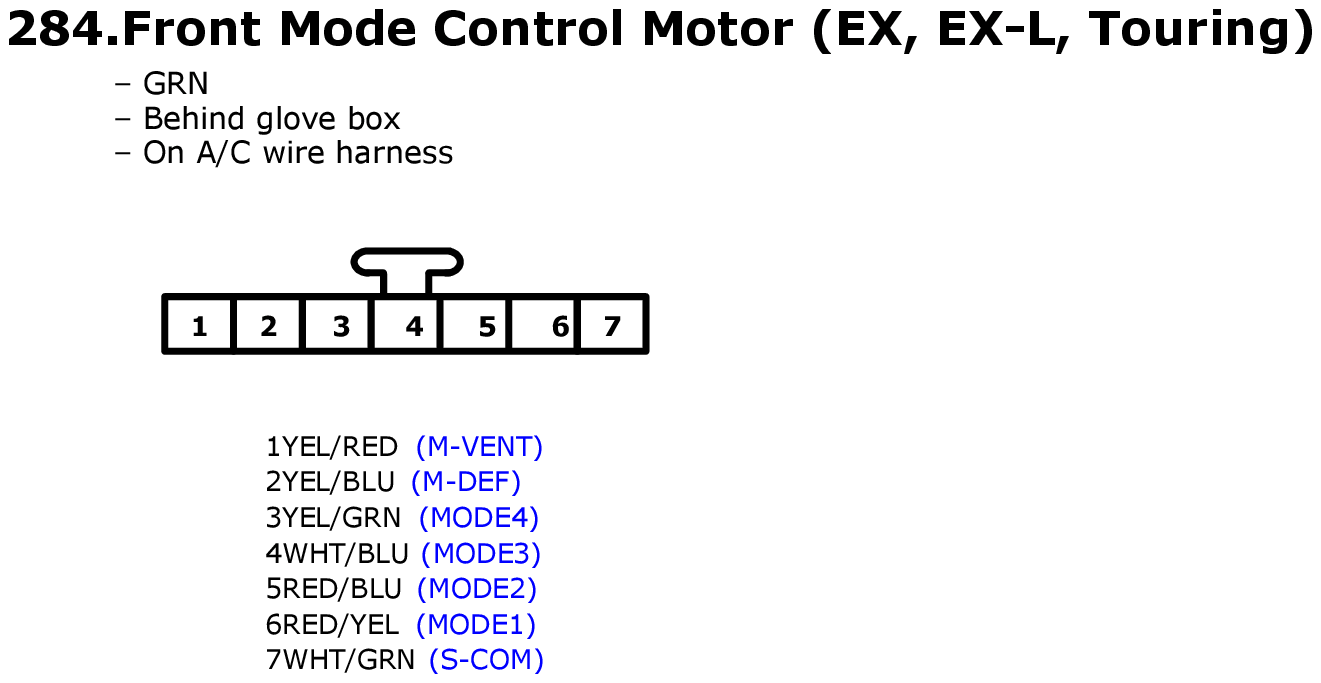

Fig 1: Front Mode Control Motor (EX, EX-L, Touring) Connector End View

GHHW5503

Courtesy of AMERICAN HONDA MOTOR CO., INC.
