Engine Mount Control Unit (EX-L, Touring) Connector End View

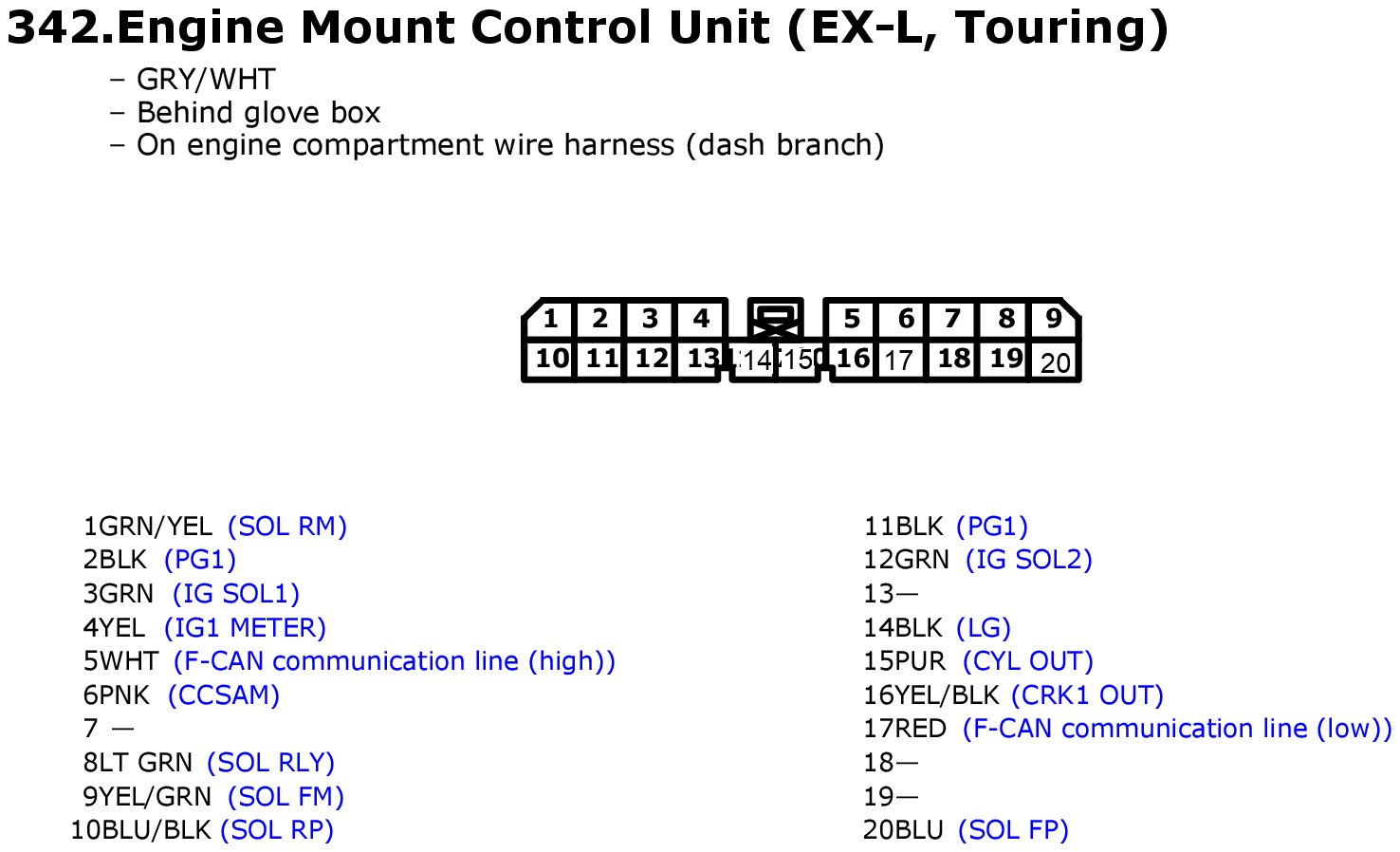

Fig 1: Engine Mount Control Unit (EX-L, Touring) Connector End View

GHHW5160

Courtesy of AMERICAN HONDA MOTOR CO., INC.
