Electrical Compass Unit (Touring except Navigation) Connector End View

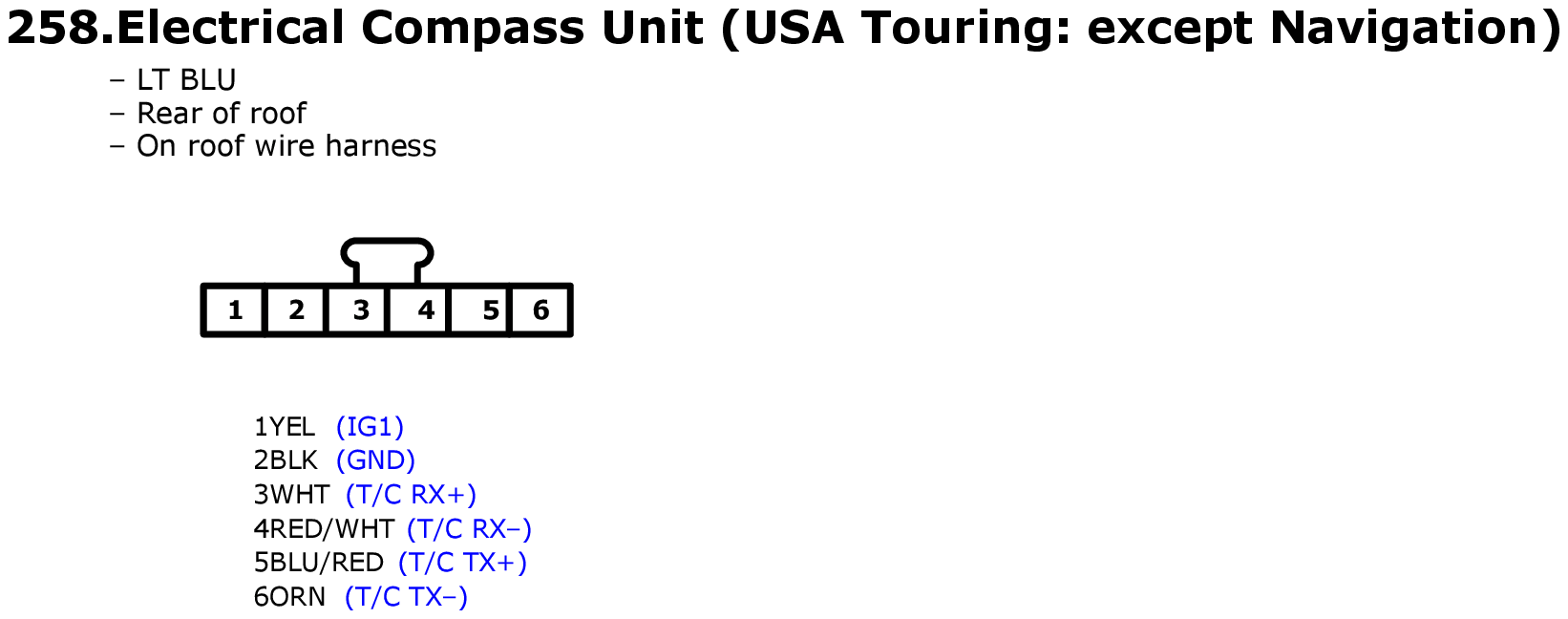

Fig 1: Electrical Compass Unit (Touring except Navigation) Connector End View

GHHW5076

Courtesy of AMERICAN HONDA MOTOR CO., INC.
