D3 Switch/Park Pin Switch/A/T Gear Position Indicator Panel Light Connector End View

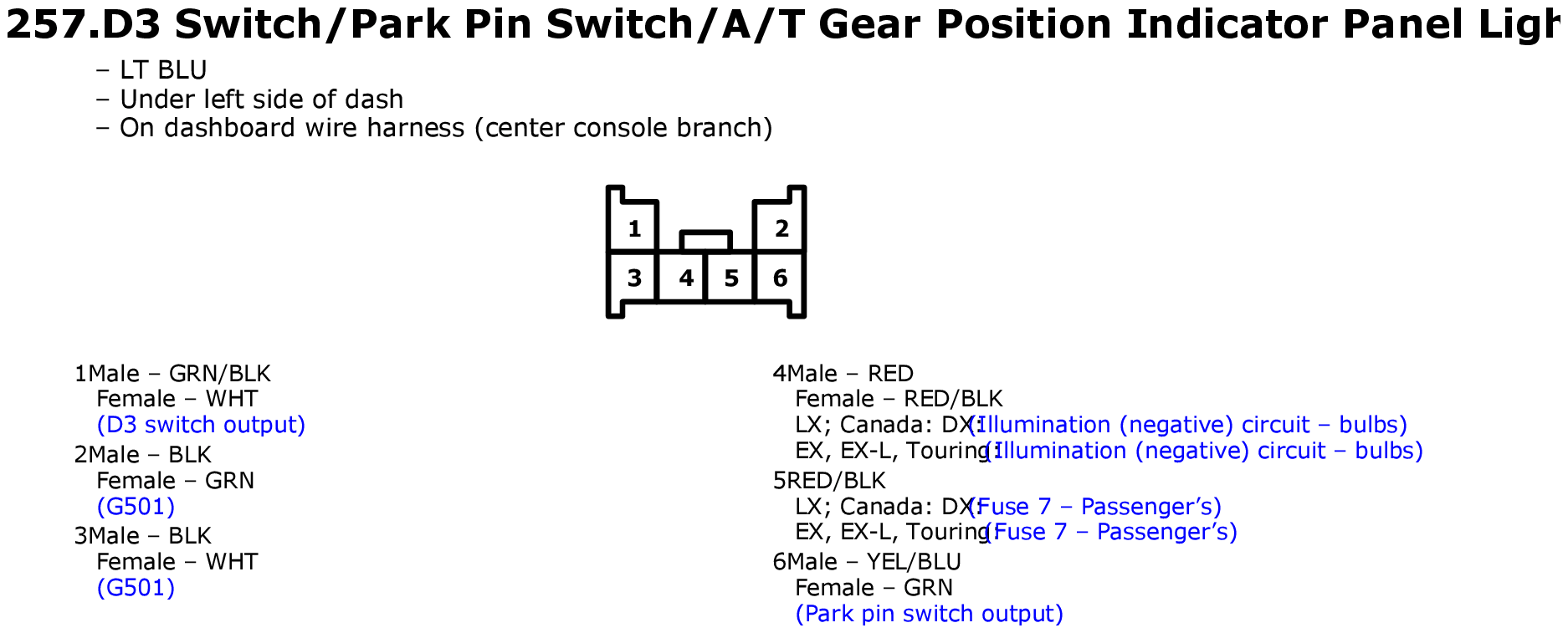

Fig 1: D3 Switch/Park Pin Switch/A/T Gear Position Indicator Panel Light Connector End View
GHHW5476Courtesy of AMERICAN HONDA MOTOR CO., INC.
