C961 Connector End View

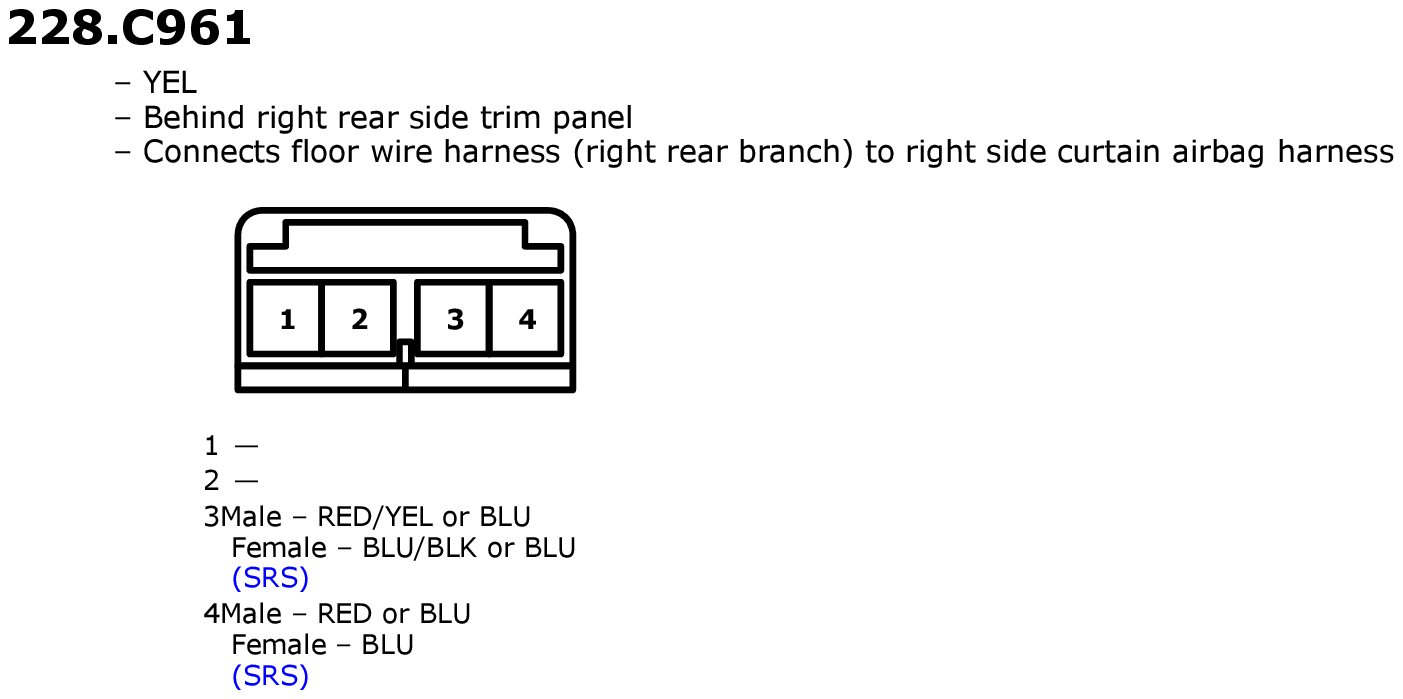

Fig 1: C961 Connector End View

GHHW5046

Courtesy of AMERICAN HONDA MOTOR CO., INC.
