C632 Connector End View

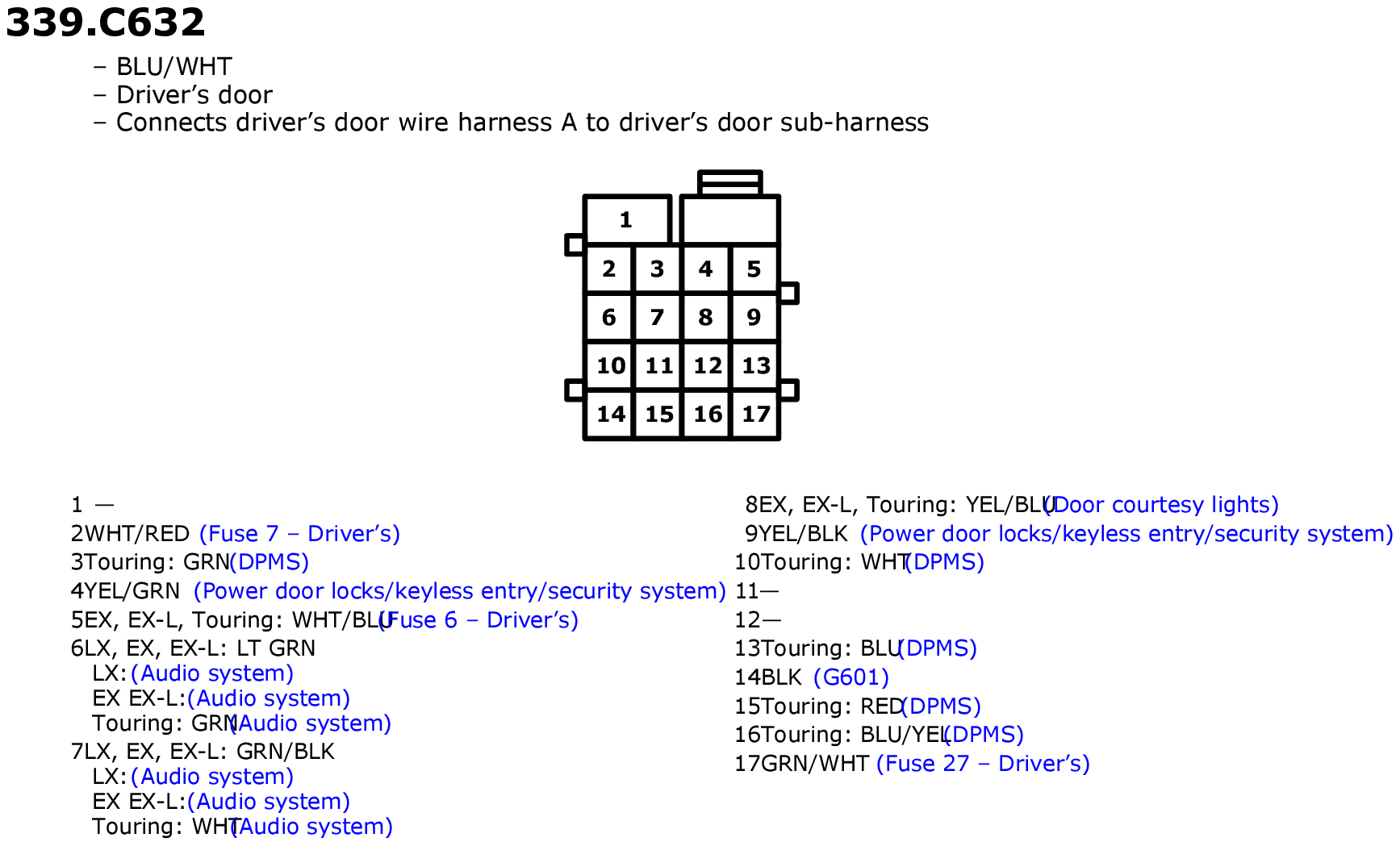

Fig 1: C632 Connector End View

GHHW5157

Courtesy of AMERICAN HONDA MOTOR CO., INC.

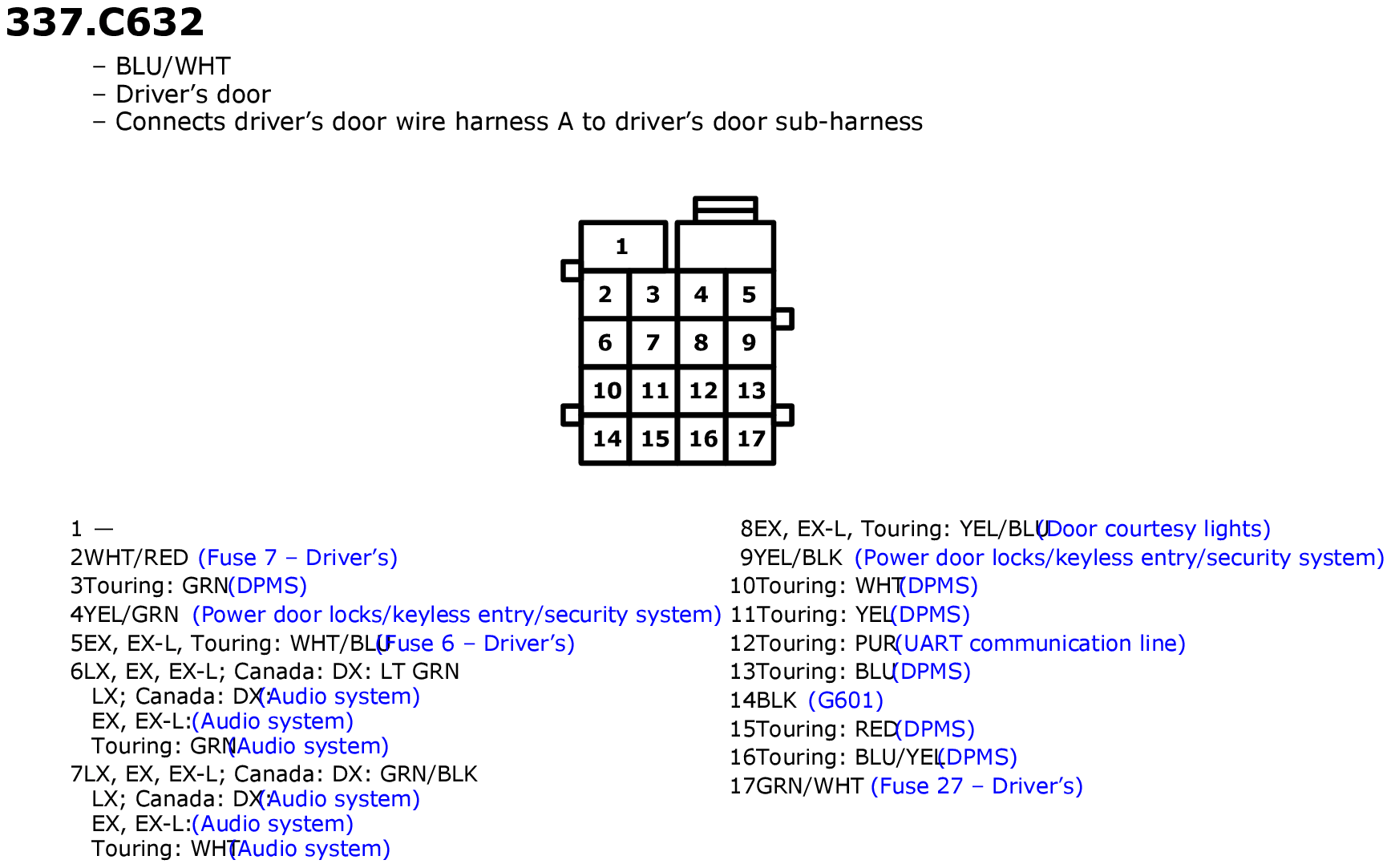

Fig 1: C632 Connector End View

GHHW5556

Courtesy of AMERICAN HONDA MOTOR CO., INC.
