Auxiliary Jack Assembly Connector End View

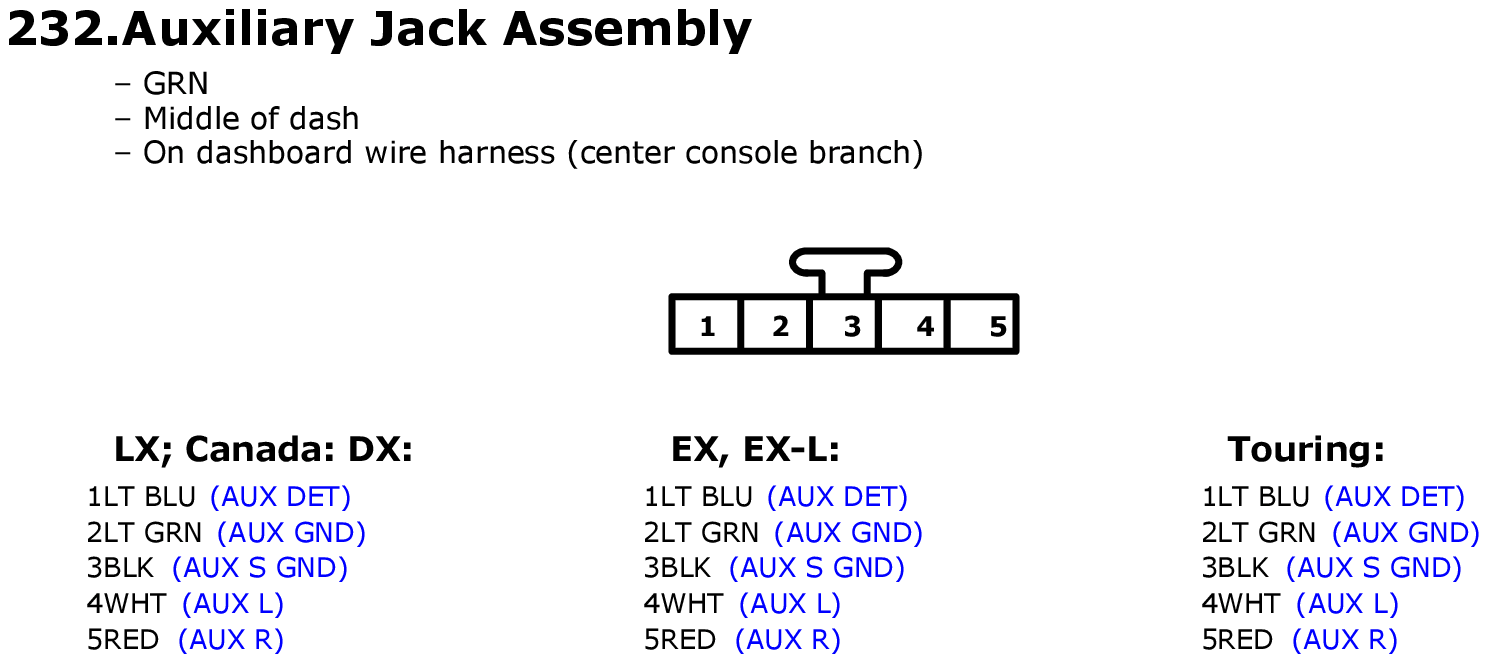

Fig 1: Auxiliary Jack Assembly Connector End View

GHHW5451

Courtesy of AMERICAN HONDA MOTOR CO., INC.
