Automatic Lighting Control Unit (Touring) Connector End View

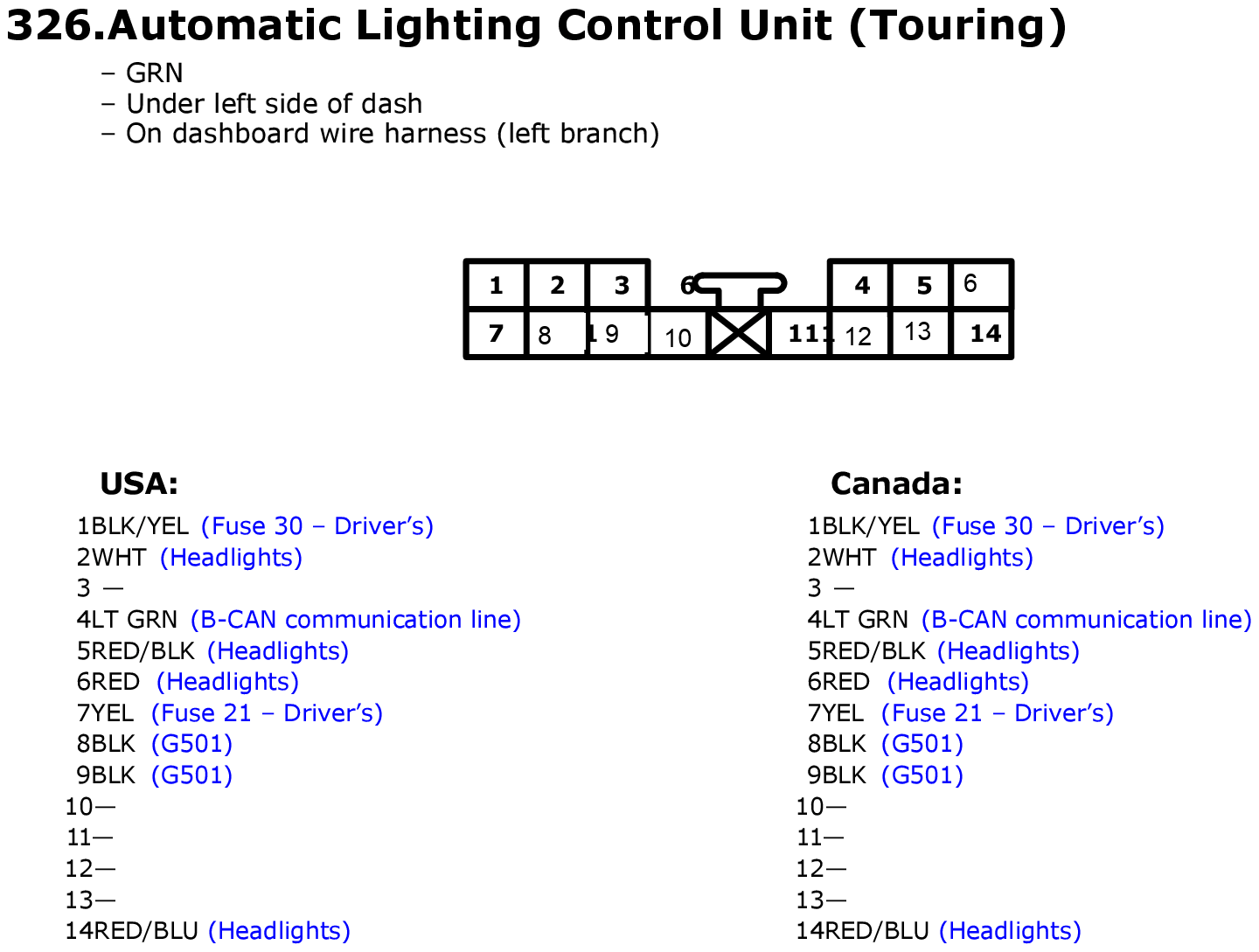

Fig 1: Automatic Lighting Control Unit (Touring) Connector End View
GHHW5144Courtesy of AMERICAN HONDA MOTOR CO., INC.

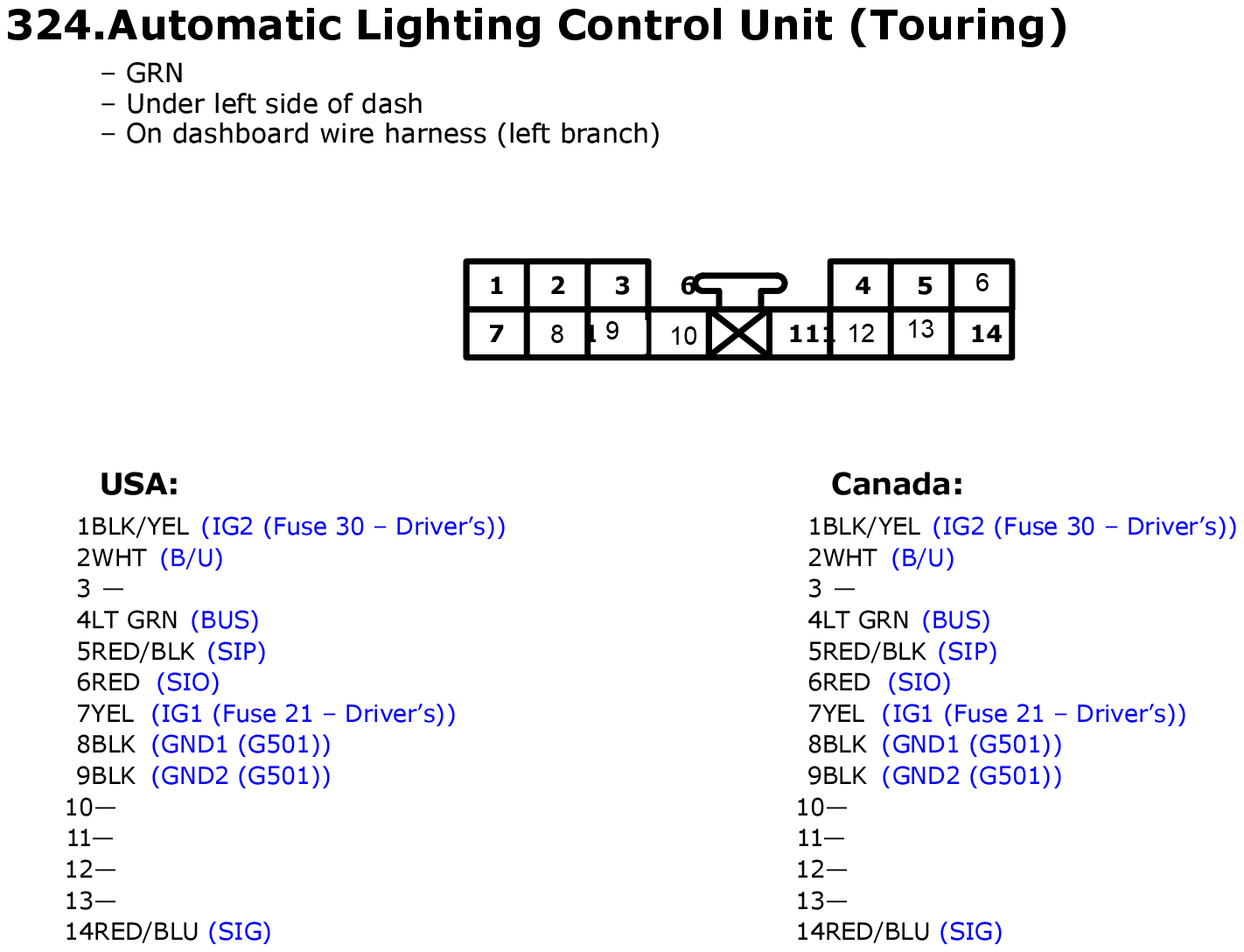

Fig 1: Automatic Lighting Control Unit (Touring) Connector End View
GHHW5543Courtesy of AMERICAN HONDA MOTOR CO., INC.
