A/C Pressure Switch Connector End View

Fig 1: A/C Pressure Switch Connector End View
GHHW5015Courtesy of AMERICAN HONDA MOTOR CO., INC.

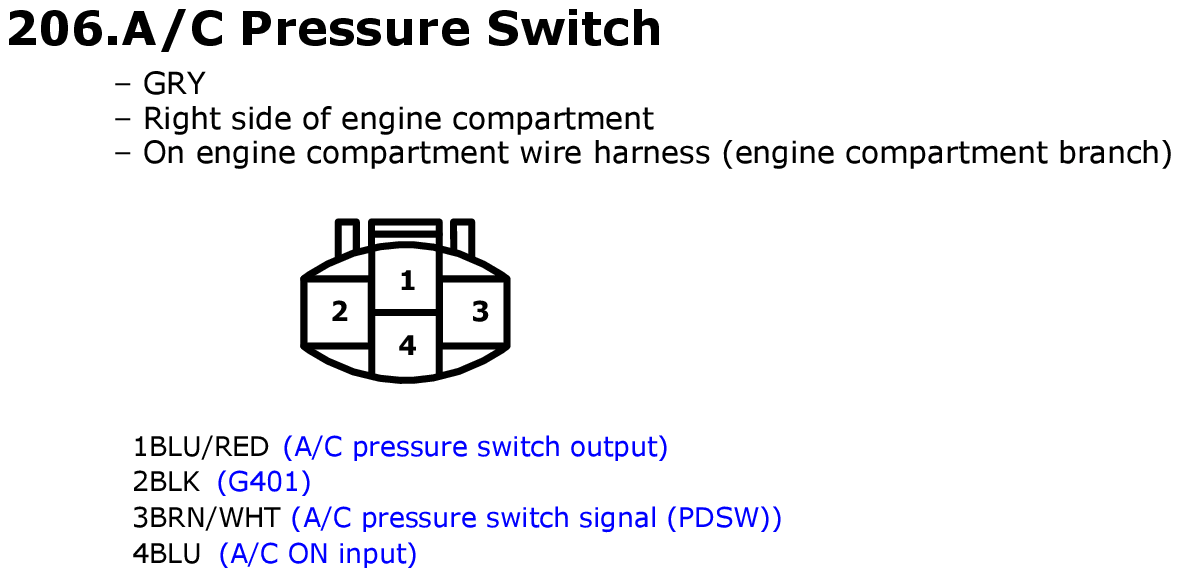

Fig 1: A/C Pressure Switch Connector End View
GHHW5425Courtesy of AMERICAN HONDA MOTOR CO., INC.
