A/C Control Panel (For PGM-FI System) Connector End View

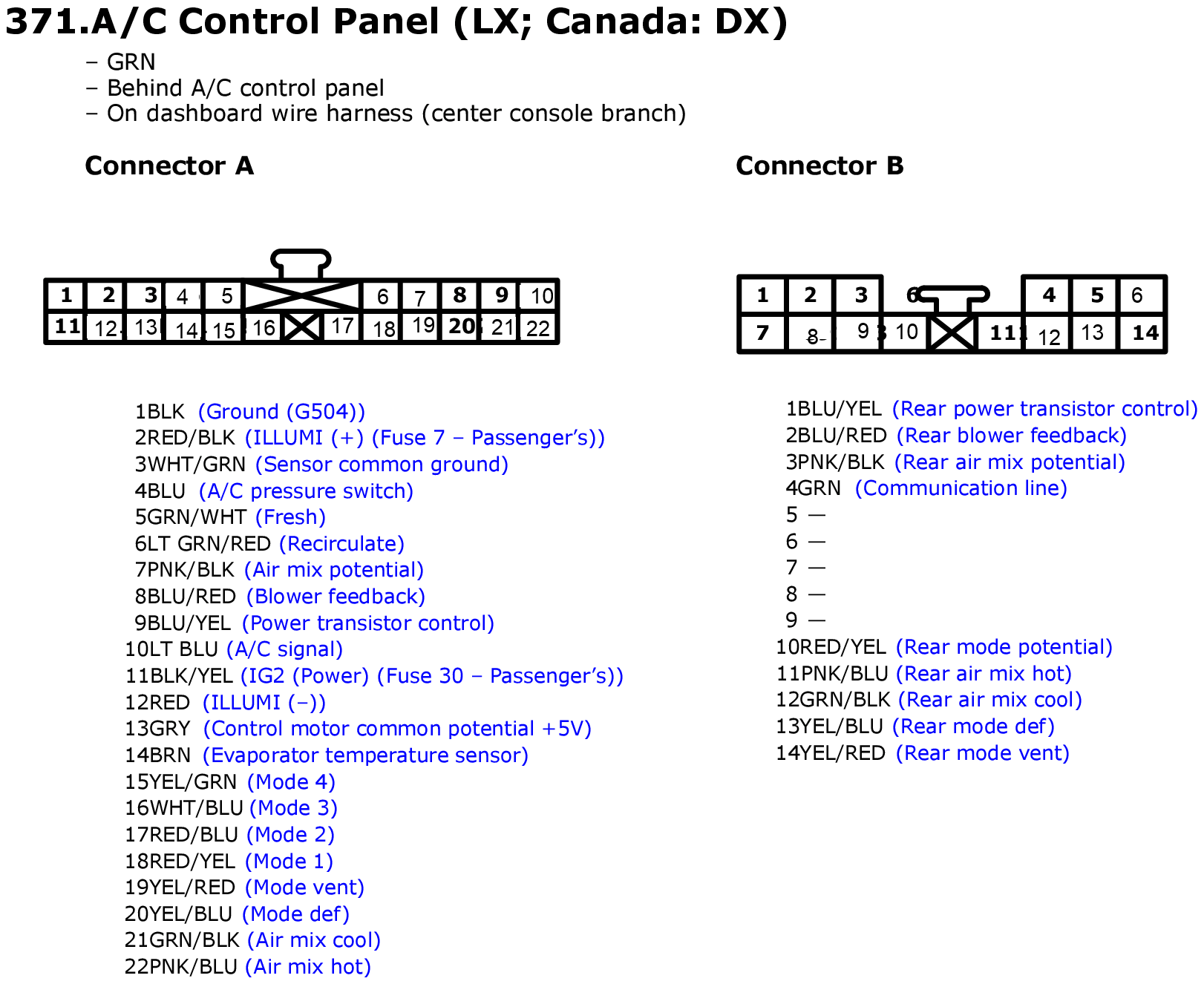

Fig 1: A/C Control Panel (For PGM-FI System) Connector End View

GHHW5590

Courtesy of AMERICAN HONDA MOTOR CO., INC.
