J35A6 engine, J35A7 engine ('07 model)

  1. Remove the engine cover (see step 7 under ENGINE REMOVAL ).
  2. Disconnect the IAT sensor 2P connector (A).

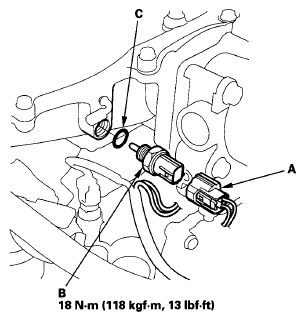

    Fig 1: Identifying IAT Sensor 2P Connector, IAT Sensor And O-Ring
    G06276795Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the IAT sensor (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
