Exploded View ('07 model)

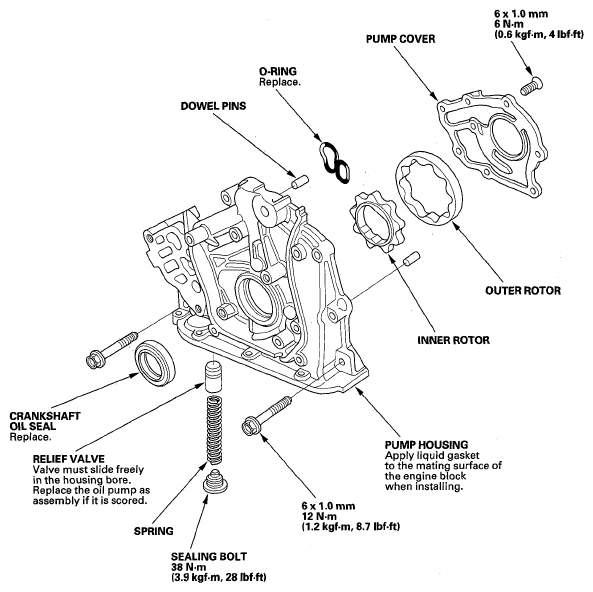

Fig 1: Exploded View Of Oil Pump - '07 Model With Torque Specifications

G05523494

Courtesy of AMERICAN HONDA MOTOR CO., INC.
