Section 17 (Charging System (1GR-FE)): Generator: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE V-BANK COVER (See  REMOVAL  )
  3. REMOVE RADIATOR SUPPORT TO FRAME SEAL LH (See  REMOVAL  )
  4. REMOVE FAN SHROUD (See  REMOVAL  )
  5. REMOVE GENERATOR ASSEMBLY
    1. Disconnect the wire harness.
      1. Remove the bolt and wire harness stay.
      2. Disconnect the connector from the generator assembly.
      3. Remove the terminal cap and nut.
      4. Disconnect the wire harness from terminal B.

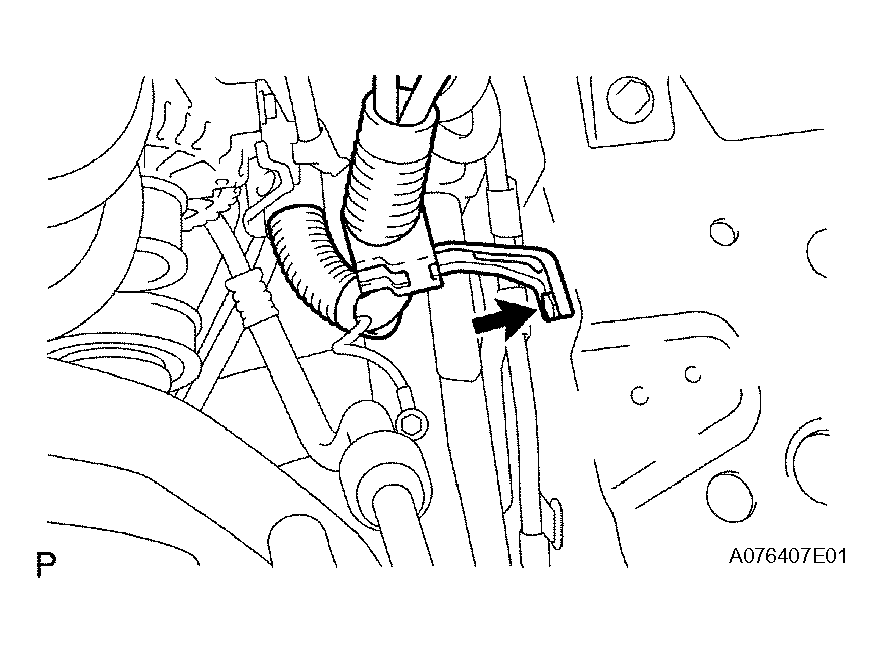

        Fig 1: Disconnecting Wire Harness
        G04409724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, then separate the wire harness clamp bracket from the generator assembly.

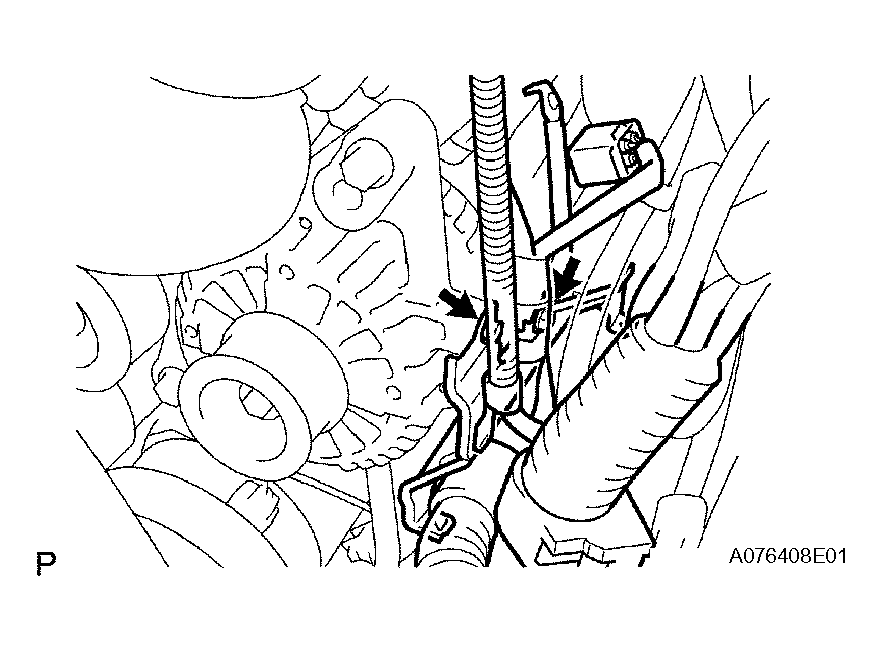

      Fig 2: Separating Wire Harness Clamp Bracket From Generator Assembly
      G04409725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts, then remove the generator assembly.

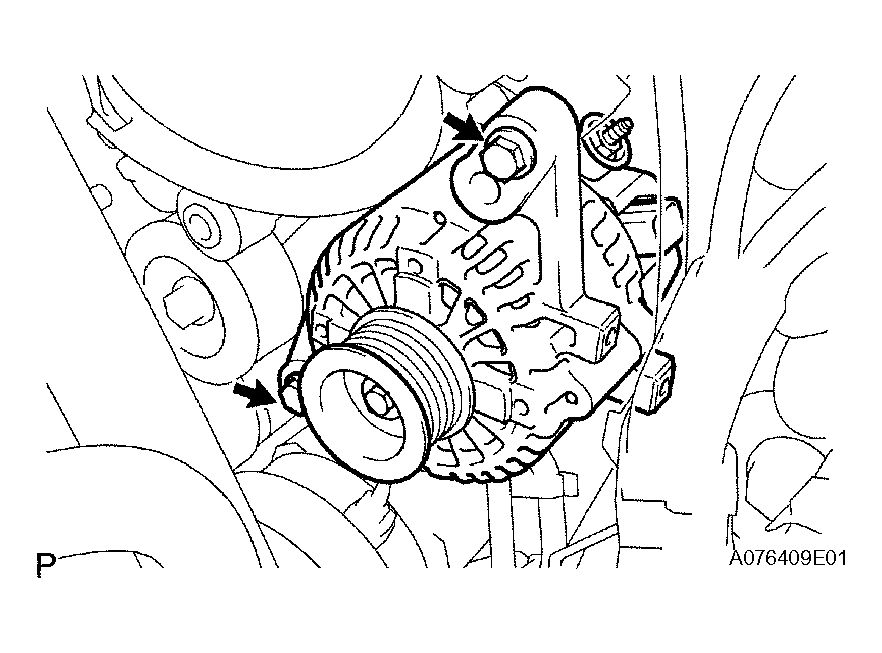

      Fig 3: Removing Generator Assembly
      G04409726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
