Section 11 (Engine Cooling System (1GR-FE)): Radiator: Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

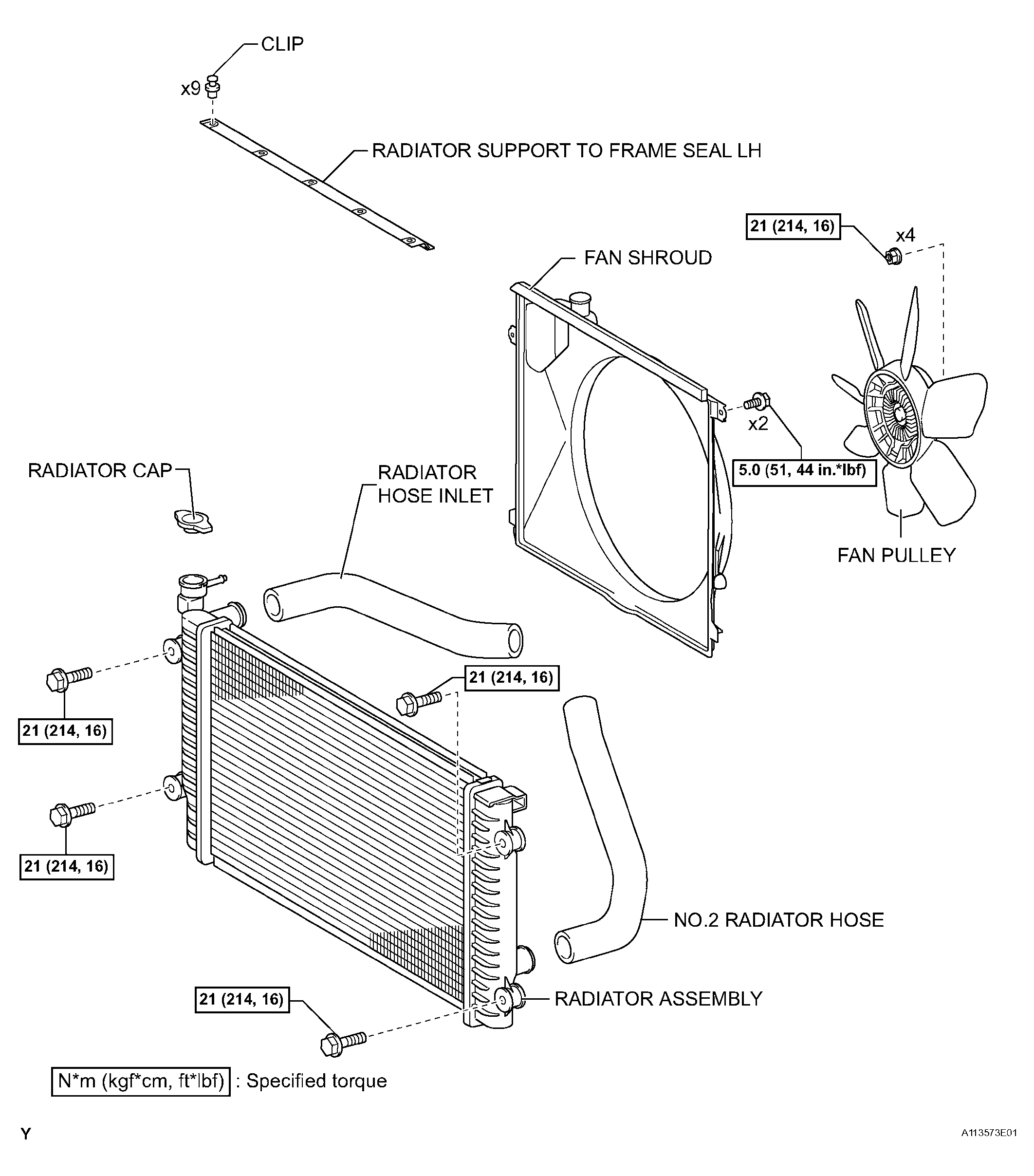

Fig 1: Identifying Radiator Components And Replacements (1 Of 2)
G04409409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

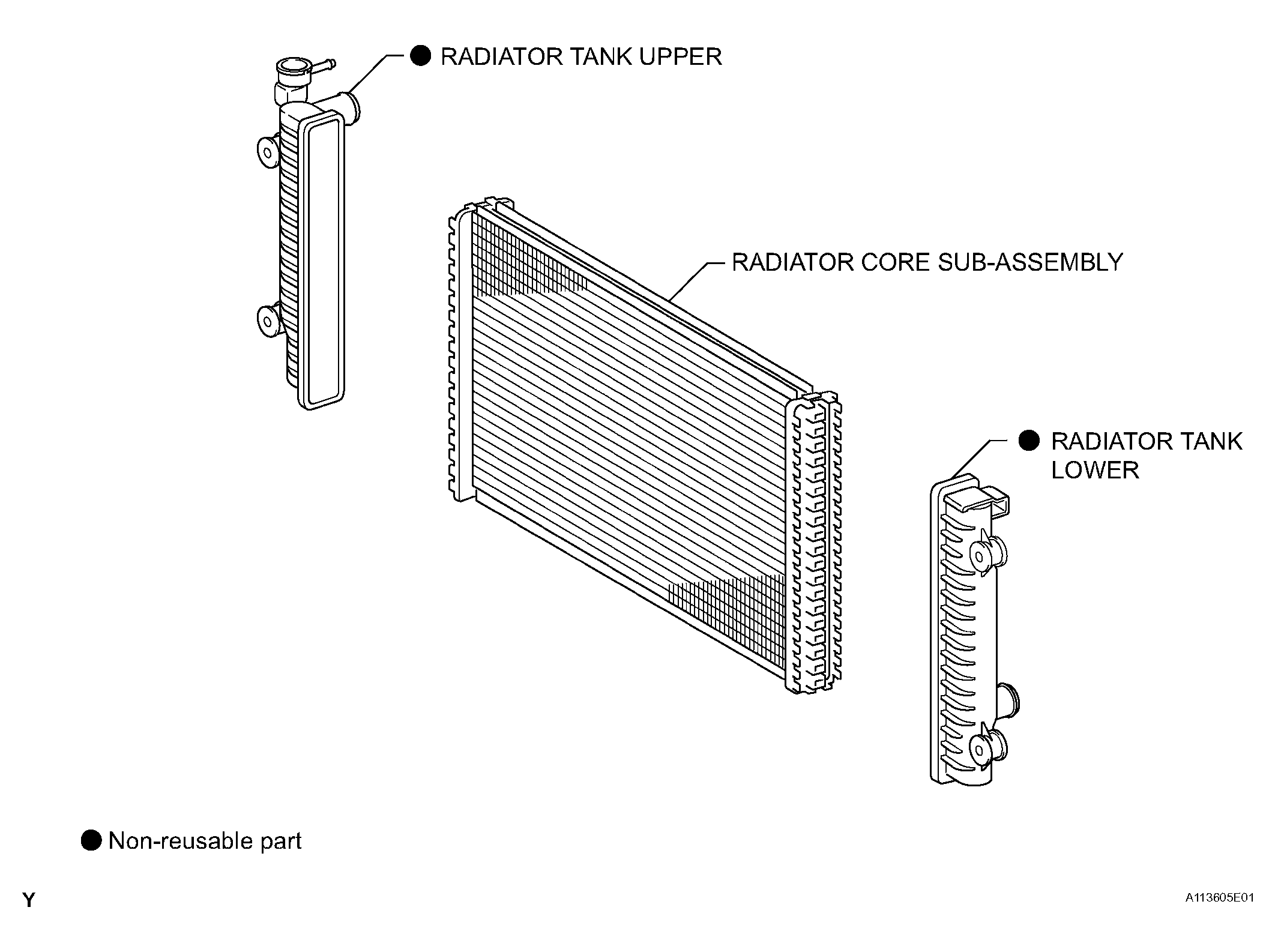

Fig 2: Identifying Radiator Components And Replacements (2 Of 2)
G04409410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
