Under-Hood Fuse/Relay Box
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

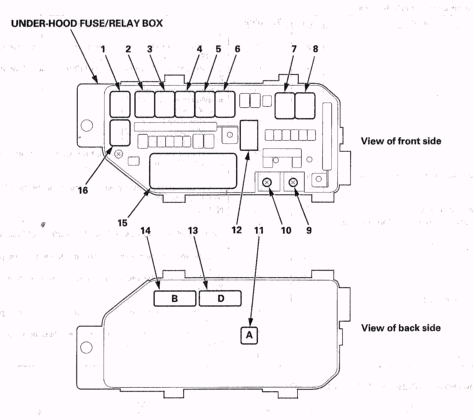

UNDER-HOOD FUSE/RELAY BOX REFERENCE
| Socket | Ref | Terminals | Connects to |
|---|---|---|---|
| A (electrical load detector (ELD)) | 11 | 3 | Left engine compartment wire harness (engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (BD) ) |
| A/C compressor clutch relay | 16 | 4 | - |
| A/C condenser fan motor relay | 7 | 4 | - |
| B (Relay circuit board) | 14 | 14 | Left engine compartment wire harness (engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (BD) ) |
| Blower motor relay | 1 | 4 | - |
| D (Relay circuit board) | 13 | 10 | Left engine compartment wire harness (engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (BD) ) |
| Electronic throttle control system (ETCS) control relay | 6 | 4 | - |
| ELD | 12 | 3 | Connector A (3P) |
| Horn relay | 2 | 4 | - |
| Ignition coil relay | 5 | 4 | - |
| PGM-FI main relay 1 | 3 | 4 | - |
| PGM-FI subrelay | 4 | 4 | - |
| Rear window defogger relay | 8 | 4 | - |
| Relay circuit board | 14 | Connector B (14P) and Connector D (10P) | |
| T1 | 15 | - | Starter cable (see CONNECTOR TO HARNESS INDEX ) |
| T102 | 10 | - | Engine wire harness (see KNOCK SENSOR SUBHARNESS (ED) ) |
