HFL Switch Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HFL switch (see HFL Switch Removal/Installation  ).

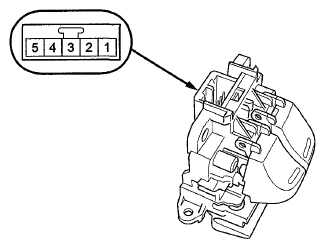

    Fig 1: Identifying HFL Switch Connector Terminals
    G06420793Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Measure the resistance between terminals No. 2 and No. 3 in each switch position to the table.
    RESISTANCE REFERENCE CHART

    Position Resistance
    No buttons pressed About 1 kΩ
    HFL TALK button pressed About 185 Ω
    HFL BACK button pressed About 49 Ω
  3. If the resistance is specified, replace the switch (see HFL Switch Test  ).
