Control Unit Input Test
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).

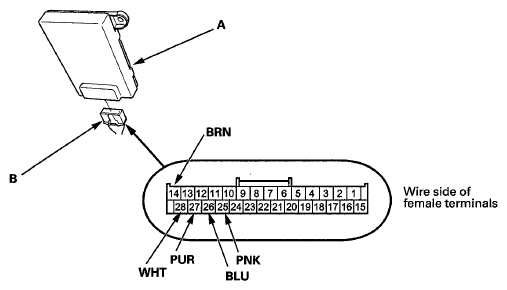

- Remove the HandsFreeLink control unit (A) (see step 2 on ).
- Inspect the connector (B) and socket terminals for a good pinfit to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to next step.
- Reconnect the connector, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to next step.CAVITY AND WIRE TESTING CONDITION CHART
Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained 14 BRN Under all conditions Measure the voltage to body ground:
There should be less than 0.2 V.- Poor ground (G401)
- An open in the wire
27 PUR Ignition switch in ACCESSORY (I) or ON (ID Measure the voltage to body ground:
There should be battery voltage.- Blown No. B18 (7.5 A) fuse in the driver's under-dash fuse/relay box
- An open in the wire
28 WHT Under all conditions Measure the voltage to body ground:
There should be battery voltage.- Blown No. A15 (10 A) fuse in the under-hood fuse/relay box
- An open in the wire
- Disconnect the 28P connector again, and make this input test at the connector.
- If the test indicates a problem, find and correct the cause, then recheck the system.
- If the input test proves OK, the HandsFreeLink control unit is faulty, replace it.CAVITY AND WIRE TESTING CONDITION CHART
Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained 25 PNK Audio unit connector B (20P) disconnected Check for continuity between terminal No. 25 and the gauge control module 32P connector terminal No. 30: There should be continuity. An open in the wire Disconnect these items: - Gauge control module 32P connector
- Climate control unit connector B (12P)
- Audio unit connector B (20P)
- Driver's under-dash fuse/relay box connector P (20P)
- Passenger's under-dash fuse/relay box connector A (38P)
- Door multiplex control unit 37P connector
- Immobilizer-keyless control unit 7P connector
- Power seat control unit connector B (40P)
Check for continuity to body ground: There should be no continuity. Short to body ground 26 BLU UAudio unit connector B (20P) disconnected Check for continuity between terminal No. 26 and the audio unit connector B (20P) terminal No. 3: There should be continuity. An open in the wire Disconnect these items: - Gauge control module 32P connector
- Climate control unit connector B (12P)
- Audio unit connector B (20P)
- Driver's under-dash fuse/relay box connector P (20P)
- Passenger's under-dash fuse/relay box connector A (38P)
- Door multiplex control unit 37P connector
- Immobilizer-keyless control unit 7P connector
- Power seat control unit connector B (40P)
Check for continuity to body ground: There should be no continuity. Short to body ground
