Vanity Mirror Light Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunvisor (see SUNVISOR REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the sunvisor (B).

    Vanity Mirror Light: 1.1 W x 2

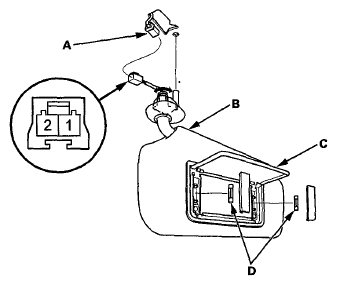

    Fig 1: Identifying Sunvisor 2P Connector And Vanity Mirror Cover
    G06420301Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between terminals in each vanity mirror cover (C) position according to the table.

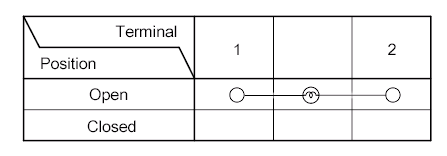

    Fig 2: Identifying Sunvisor 2P Connector And Vanity Mirror Cover
    G00505291Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, check the bulbs (D). If the bulbs are OK, the vanity mirror light is faulty; replace the sunvisor (see SUNVISOR REMOVAL/INSTALLATION ).
  5. Install the parts in the reverse order of removal.
