Courtesy Light Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully pry off the lens (A) with a small screwdriver.

    Courtesy Light: 2CP

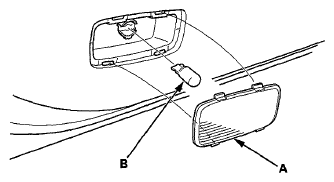

    Fig 1: Identifying Lens And Bulb
    G06420306Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bulb (B) from the socket.
  3. Install the light in the reverse order of removal.
