Ceiling Light Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ceiling light switch OFF.
  2. Carefully pry the lens (A) off with a small screwdriver.

    Ceiling Light: 8 W

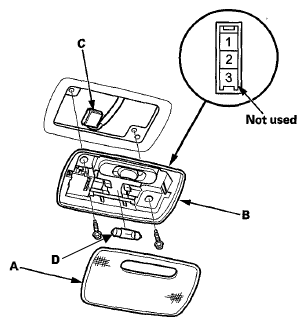

    Fig 1: Identifying Ceiling Light And Ceiling Light 3P Connector
    G06420303Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws, then remove the ceiling light (B).
  4. Disconnect the 3P connector (C) from the ceiling light.
  5. Check for continuity between the terminals in each switch position according to the table.

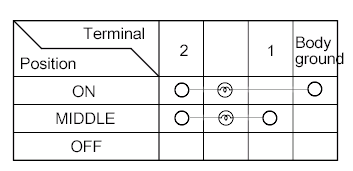

    Fig 2: Identifying Terminal Position Chart
    G00505292Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity is not as specified, check the bulb. If the bulb is OK, replace the ceiling light.
  7. Install the light in the reverse order of removal.
