Cargo Area Light Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Turn the cargo area light switch OFF.
  3. Carefully pry out the cargo area light (A).

    Cargo Area Light: 5 W

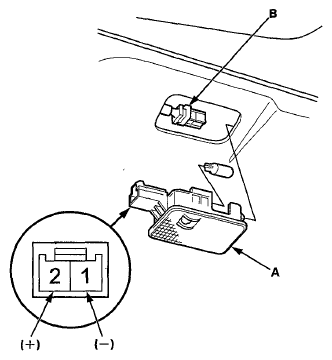

    Fig 1: Identifying Cargo Area Light And Cargo Area Light 2P Connector
    G06420304Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the 2P connector (B) from the cargo area light.
  5. Check for continuity between terminals No. 2 (+) and No. 1 (-). There should be continuity. If there is no continuity, check the bulb. If the bulb is OK, replace the cargo area light assembly.
    NOTE:
    • Make sure the correct test lead (+ or -) is placed on the terminal.
    • When checking for continuity across the diode, use the diode setting (→ ) on the digital volt/ohm meter to check the diode bias.
    • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not all in the opposite direction (reverse).
      Fig 2: Identifying Terminal Position Chart
      G00505293Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity is not specified, check the bulb (C). If the bulb is OK, replace the cargo area light.
  7. Install the light in the reverse order of removal.
